| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,465 pcs
|
1465 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Inner Diameter | |
| Barrel Length | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Gender | |
| Insulation | |
| Insulation Diameter | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Standard Package Qty | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

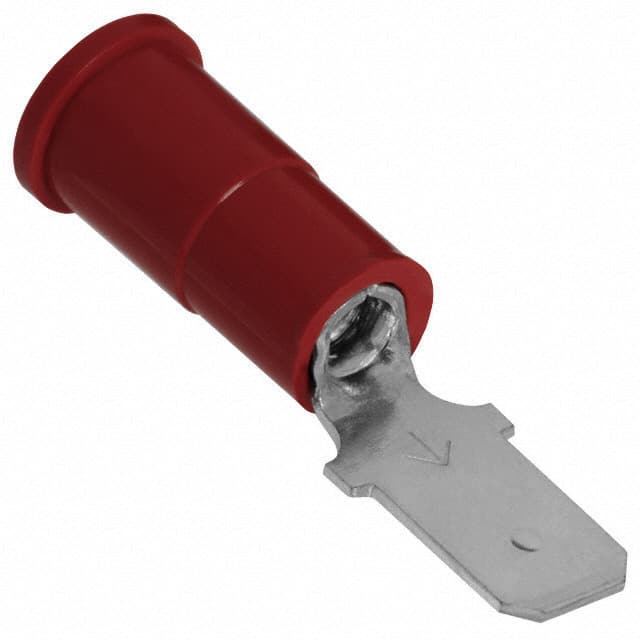

The 3M MVU18-187DMK is a male quick disconnect tab terminal designed for 18-22 AWG wire. It features a 0.187" (4.75mm) tab width and 0.020" (0.51mm) tab thickness, making it suitable for standard quick disconnect applications. The terminal has an overall length of 21.59mm (0.850") with a barrel length of 6.10mm (0.240") and a barrel inner diameter of 2.03mm (0.080"). The insulation diameter is 3.68mm (0.145").
The terminal is constructed from copper with a tin contact finish, ensuring good conductivity and corrosion resistance. It features a butted seam design and is insulated on the non-mating end with red vinyl. The mounting type is free hanging (in-line) and the termination method is crimp. This part is RoHS3 compliant, REACH unaffected, and has an MSL of 1 Unlimited. It is packaged in cartons of 1000 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.68 | $0.68 |
| 10+ | $0.58 | $0.58 |
| 25+ | $0.51 | $0.51 |
| 100+ | $0.49 | $0.49 |
| 250+ | $0.44 | $0.44 |
| 1,000+ | $0.42 | $0.42 |
| 3,000+ | $0.36 | $0.36 |
| 5,000+ | $0.35 | $0.35 |
| 10,000+ | $0.34 | $0.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MVU18-187DMK accepts 18-22 AWG wire.
The tab width is 0.187" (4.75mm) and the tab thickness is 0.020" (0.51mm).
Yes, it is insulated on the non-mating end with red vinyl.
The termination method is crimp.
The contact material is copper with a tin finish.
The standard package quantity is 1000 pieces per carton.
