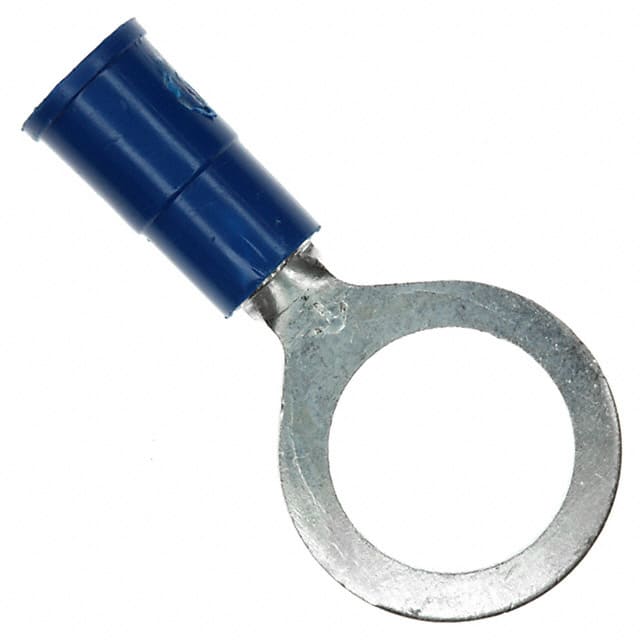

MVU14-38RK 3M MVU14-38RK is a vinyl insulated ring terminal for 14-16 AWG wire with a #3/8 stud size. Features a butted seam barrel, crimp termination, and tin-plated ETP copper contact.
Mfr Part #:

MVU14-38RK

Available from 1 distributors
Mfr Name: 3M Electronic Solutions
3M Electronic Solutions
3M MVU14-38RK is a vinyl insulated ring terminal for 14-16 AWG wire with a #3/8 stud size. Features a butted seam barrel, crimp termination, and tin-plated ETP copper contact.
✓ Total Stock: 1,000 pcs
$ Price Range: $0.59 - $1.07

MVU14-38RK Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MVU14-38RK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Contact Material
Industrial Grade
Insulation
Insulator Material
Length
Mounting Type
SVHC Present
Stud
Terminal Type
Termination
Thickness
Width
Wire Gauge
View Similar Products (0)

MVU14-38RK Description

Short technical summary and product information.

The 3M MVU14-38RK is a circular ring terminal from the Scotchlok series, designed for reliable wire termination in electrical applications. It accepts 14-16 AWG stranded copper wire and fits a #3/8 stud. The terminal features a vinyl insulator, a butted seam barrel, and a crimp termination style.



Electrical ratings include a maximum voltage of 600 V for building wire and 1000 V for signs, fixtures, and luminaires, with a maximum temperature rating of 105°C. The contact is made of ETP copper with a tin plating, ensuring good conductivity and corrosion resistance.



The terminal is free hanging (in-line) and measures 28.70 mm in length, 14.22 mm in width, and 0.76 mm in thickness. It is UL listed and CSA certified for use on stranded copper wire only.

MVU14-38RK Quick Information

Product Type: Ring Terminal
Series: MVU
Canonical Name: 3M MVU14-38RK Vinyl Insulated Ring Terminal
Subcategory: Insulated Ring Connector

MVU14-38RK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MVU14-38RK Estimated Pricing

Qty Low High
1+ $1.07 $1.07
10+ $0.91 $0.91
25+ $0.81 $0.81
100+ $0.78 $0.78
250+ $0.73 $0.73
500+ $0.69 $0.69
1,000+ $0.65 $0.65
2,000+ $0.61 $0.61
5,000+ $0.59 $0.59

Estimated market price range - modelled values for guidance only, not live distributor offers.

MVU14-38RK Features

  • Vinyl insulated ring terminal for 14-16 AWG.
  • Fits #3/8 stud size with butted seam barrel.
  • Rated 600V/1000V and 105°C maximum.
  • Tin-plated ETP copper contact material.
  • Crimp termination for stranded copper wire.

MVU14-38RK Applications

  • Building wire termination applications.
  • Signs, fixtures, and luminaire wiring.
  • General electrical connection in control panels.
  • Power distribution and junction boxes.

MVU14-38RK FAQs

6 frequently asked questions generated from this part’s specifications.
What wire gauge does the MVU14-38RK accept?

It accepts 14-16 AWG stranded copper wire.

What is the stud size for this ring terminal?

The stud size is 3/8 inch.

What is the maximum voltage rating?

600 V for building wire and 1000 V for signs, fixtures, and luminaires.

What is the maximum operating temperature?

105°C (221°F).

What is the contact material and finish?

Contact is ETP copper with a tin plating.

Is the terminal insulated?

Yes, it is insulated with vinyl material.
