| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Max Load | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

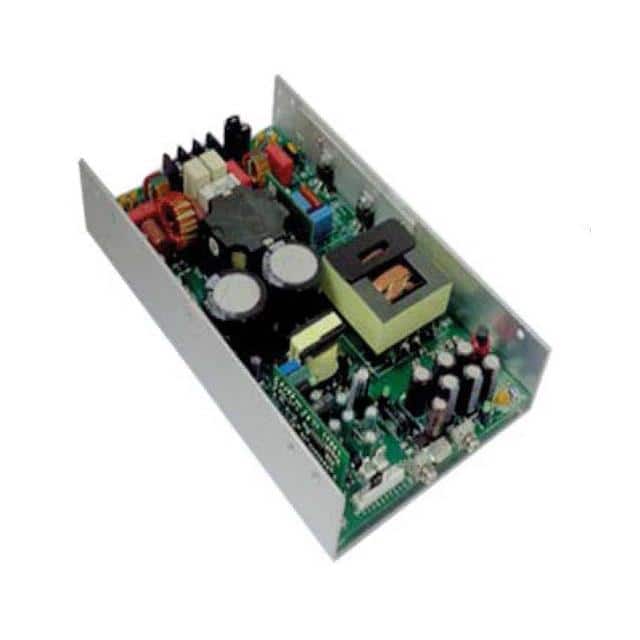

The EOS Power MVPS600-1012 is an open-frame AC/DC converter designed for medical applications. It provides a 12V output at up to 25A, delivering a total of 300W of power.
Key electrical specifications include a universal input voltage range of 85-264 VAC or 120-390 VDC, with efficiencies up to 93%. The converter supports features such as adjustable output, load sharing, Power Factor Correction (PFC), remote on/off, remote sense, standby output, and N+1 redundant power supply capability. It operates within a wide temperature range of -40°C to 70°C.
Designed for chassis mounting, this converter meets stringent medical standards, including approval to EN60601 Edition 3.1 and IEC60601-1-2:2014 (4th Edition). Its dimensions are 8.50" L x 5.00" W x 1.61" H (216.0mm x 127.0mm x 41.0mm).
Additional features include dual fusing, peak power capability, and a power good/power fail signal, making it suitable for demanding medical equipment and other industrial applications requiring reliable power conversion.
The MVPS600-1012 provides a 12V output at 25A.
The maximum output power for the MVPS600-1012 is 300W.
The operating temperature range is -40°C to 70°C.
The MVPS600-1012 is designed for chassis mount.
Key features include adjustable output, load sharing, PFC, remote on/off, remote sense, standby output, and universal input.
This converter is suitable for medical applications.
