| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

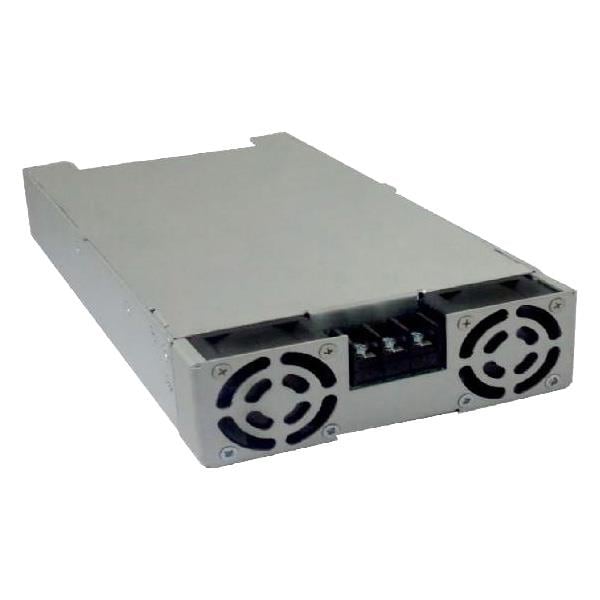

The EOS Power MVPS1000-1012 is an AC-DC power module designed for demanding applications, particularly within the medical industry. It features a single 12V DC output capable of delivering up to 41.67A, resulting in a total output power of 1kW. The module operates with a wide input voltage range of 85 VAC to 264 VAC and 120 VDC to 390 VDC, with an input frequency of 47 Hz to 63 Hz.
Key electrical specifications include an efficiency of 93% and an isolation voltage of 4.245 kVAC. The module offers regulated load regulation and supports features such as adjustable output, load sharing, Power Factor Correction (PFC), remote on/off, remote sense, and a standby output. It is designed for chassis mounting and has an open frame construction.
Thermal performance is rated for an operating temperature range of -40°C to +70°C, with derating. The physical dimensions are 241.5mm in length, 127mm in width, and 41mm in height. The MVPS1000-1012 is compliant with RoHS3 standards and has an MSL of 1.
The output voltage is 12 VDC.
The output current is 41.67 A.
The total output power is 1 kW.
The operating temperature range is -40°C to +70°C (With Derating).
It uses chassis mounting.
Yes, it is RoHS3 Compliant.
