| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

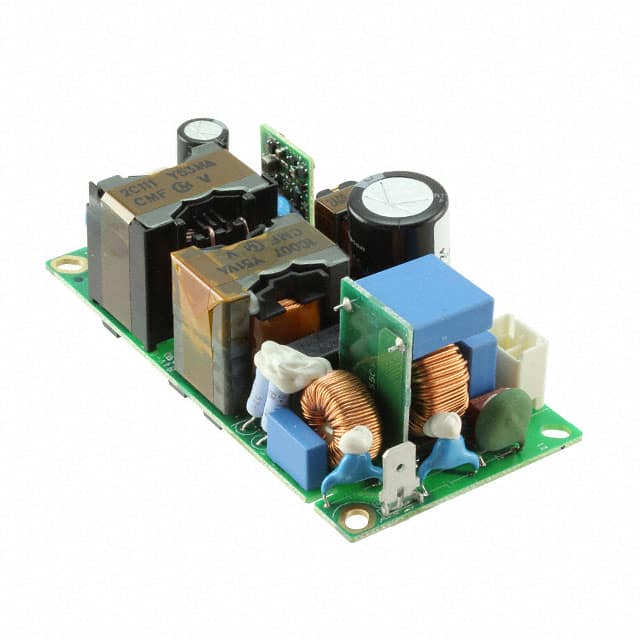

The Murata MVAD160-24 is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. It offers a continuous output power of 110W, with a forced air rating of 160W. The converter features a chassis mount type and a universal input, making it versatile for various power supply needs.
Key electrical specifications include a 93% efficiency and an isolation voltage of 4kV. The operating temperature range is from -40°C to 85°C with derating. Its dimensions are 101.6mm in length, 50.8mm in width, and 38.1mm in height.
This model supports DC input capability and has received approvals from CB, CE, cURus, and VDE. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended conditions.
The MVAD160-24 is an open frame AC/DC converter.
The MVAD160-24 provides 110W of continuous output power, with a rating of 160W under forced air conditions.
The dimensions are 101.6mm in length, 50.8mm in width, and 38.1mm in height.
The operating temperature range is -40°C to 85°C, with derating applied.
Yes, the MVAD160-24 is RoHS3 compliant.
The Moisture Sensitivity Level (MSL) is 1, indicating unlimited shelf life.
