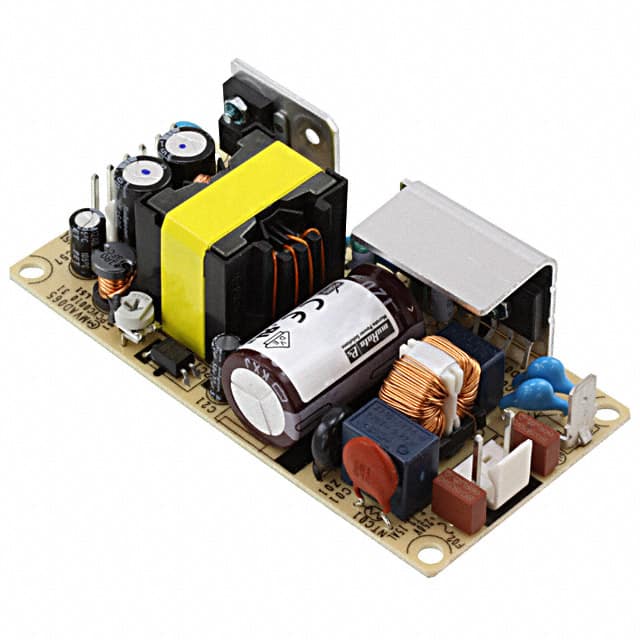

The Murata MVAD065-05 is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. This unit delivers 55W of power with a single output and a maximum current of 11A.
Key electrical specifications include a universal input capability and an efficiency of 84%. The converter operates within a temperature range of -10°C to 70°C, with derating applied at higher temperatures. It also features DC input capability and remote sense functionality.
Mechanically, the MVAD065-05 has dimensions of 101.6mm x 50.8mm x 33.1mm and is designed for chassis mounting. It has undergone safety certifications including CB, CE, cURus, and VDE, with an insulation voltage rating of 4kV.
Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status. This converter is a reliable choice for power supply needs in commercial and medical equipment.
The Murata MVAD065-05 has an output power of 55W.
The maximum output current for the MVAD065-05 is 11A.
The MVAD065-05 uses chassis mount.
The MVAD065-05 is suitable for ITE (Commercial) and Medical applications.
The operating temperature range is -10°C to 70°C, with derating.
The efficiency of the MVAD065-05 is 84%.
