| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

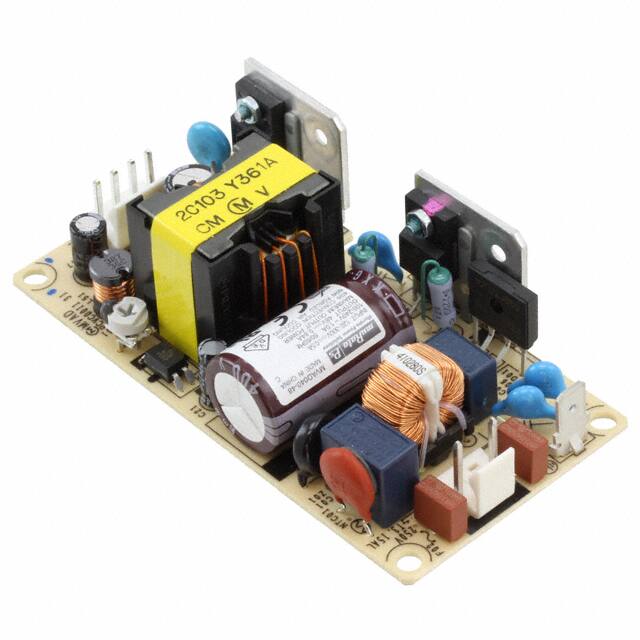

The Murata MVAD040-48 is an open-frame AC/DC converter with a power output of 40W and a 48V output voltage. It is designed for applications requiring ITE (Commercial) and Medical certifications.
This converter boasts an efficiency of 89% and features universal input capabilities, along with DC input capability. Its operating temperature range is -20°C to 70°C with derating. The unit is chassis mounted and has dimensions of 101.6mm x 50.8mm x 30.1mm.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. The isolation voltage is rated at 3 kV.
The output voltage is 48V.
The output current rating is 840 mA.
The power rating is 40W.
The efficiency is 89%.
The isolation voltage is 3kV.
The operating temperature range is -20°C to 70°C with derating.
The mounting style is chassis mount.
