| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

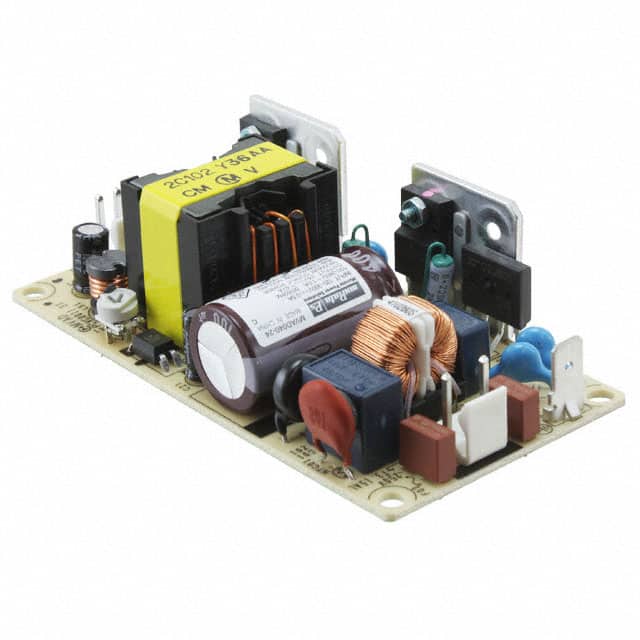

The Murata MVAD040-24 is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. This unit provides a 40W power output with a 1.67A current rating and 3kV isolation voltage. It operates with an efficiency of 88% and features universal input capability.
The converter is designed for chassis mounting and has dimensions of 101.6mm x 50.8mm x 30.1mm. The operating temperature range is -20°C to 70°C with derating. It offers a single output and complies with RoHS3 standards.
Key specifications include a 40W power rating, 1.67A output current, and 3kV isolation. The open frame construction and chassis mount type make it suitable for integration into various systems. Its universal input and suitability for commercial and medical applications highlight its versatility.
24V
-20°C to 70°C with derating
88%
3 kV
CB, CE, cURus, VDE
101.6mm x 50.8mm x 30.1mm
1
