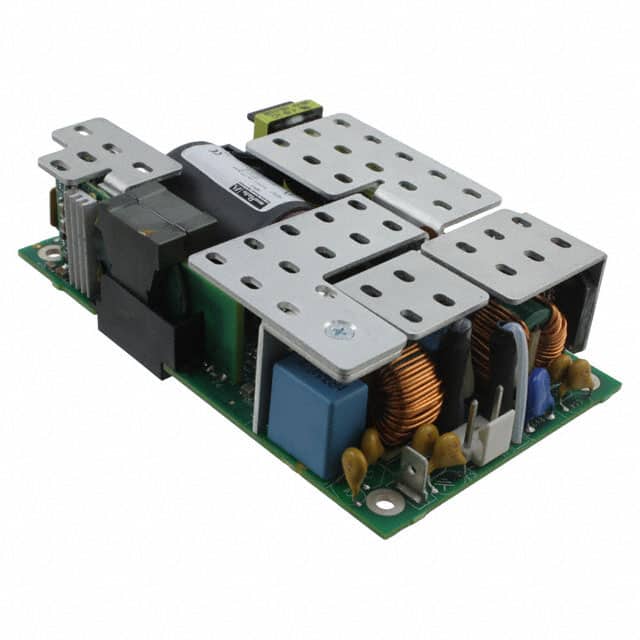

The Murata MVAC400-48AFD is an open frame AC DC converter designed for ITE (Commercial) and Medical applications. It operates with a universal input voltage range of 90 to 264 VAC.
This converter provides three distinct output voltages: 50V at 8A, 12V at 1A, and 5V at 2A, delivering a total power of 250W, or up to 400W with forced air. Key electrical specifications include an isolation voltage of 3 kV and an efficiency of 93%.
Designed for easy integration, the MVAC400-48AFD features a chassis mount type. Its dimensions are 127.0mm x 76.2mm x 30.0mm. The operating temperature range is -10°C to 70°C with derating. Additional features include hot swappable capability, load sharing, PFC, remote on/off, remote sense, and a standby output.
Compliance includes RoHS3 status, REACH unaffected, and various agency approvals such as CB, CCC, CE, cURus, and VDE.
The Murata MVAC400-48AFD provides three output voltages: 50V, 12V, and 5V.
The input voltage range for the MVAC400-48AFD is 90 to 264 VAC.
The power rating is 250W, with a forced air rating of 400W.
The operating temperature range is -10°C to 70°C, with derating.
The MVAC400-48AFD uses chassis mount.
Key features include hot swappable capability, load sharing, PFC, remote on/off, remote sense, standby output, and universal input.
It is suitable for ITE (Commercial) and Medical applications.
