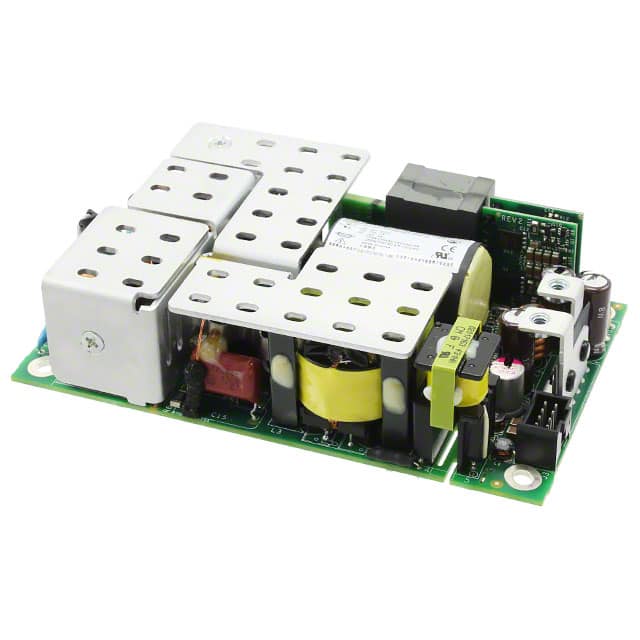

MVAC250-24AFT The Murata MVAC250-24AFT is an open-frame AC/DC converter with a chassis mount design. It delivers 170W of power with 10.4A current and features 93% efficiency.
Mfr Part #:

MVAC250-24AFT

Mfr Name: Murata
Murata
The Murata MVAC250-24AFT is an open-frame AC/DC converter with a chassis mount design. It delivers 170W of power with 10.4A current and features 93% efficiency.
Stock on Request

MVAC250-24AFT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Package / Case
Power (Watts)
Type
Voltage
Width

MVAC250-24AFT Description

Short technical summary and product information.

The Murata MVAC250-24AFT is an open-frame AC/DC power supply converter designed for ITE (Commercial) and Medical applications. It features a chassis mount type and operates with a universal input voltage.



Key electrical specifications include a power output of 170W (250W with forced air), a current rating of 10.4A, and an efficiency of 93%. The converter also offers features such as Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, and Standby Output. It provides a single output and has an isolation voltage of 4 kV.



The operating temperature range is -10°C to 70°C with derating. The physical dimensions are 127.0mm in length, 76.2mm in width, and 35.6mm in height. The packaging is supplied in a tray.



This converter is approved by CB, CE, cURus, and VDE agencies, indicating compliance with various international safety standards. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.

MVAC250-24AFT Quick Information

Product Type: AC DC Converter
Canonical Name: Murata MVAC250-24AFT AC/DC Converter
Subcategory: AC DC Converters

MVAC250-24AFT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MVAC250-24AFT Features

  • Open frame AC/DC converter for ITE and Medical.
  • 170W output power, 10.4A current.
  • High 93% efficiency.
  • Chassis mount design.
  • RoHS3 compliant.

MVAC250-24AFT Applications

  • Suitable for ITE commercial equipment.
  • Designed for medical device applications.
  • Supports hot-swappable functionality.
  • Features load sharing capabilities.

MVAC250-24AFT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the power output of the Murata MVAC250-24AFT?

The Murata MVAC250-24AFT has a power output of 170W, which can reach 250W with forced air.

What is the operating temperature range for the MVAC250-24AFT?

The operating temperature range for the MVAC250-24AFT is -10°C to 70°C, with derating.

What type of mounting does the MVAC250-24AFT use?

The MVAC250-24AFT uses a chassis mount.

Is the Murata MVAC250-24AFT RoHS compliant?

Yes, the MVAC250-24AFT is RoHS3 compliant.

What is the Moisture Sensitivity Level (MSL) for the MVAC250-24AFT?

The Moisture Sensitivity Level (MSL) for the MVAC250-24AFT is 1 Unlimited.
