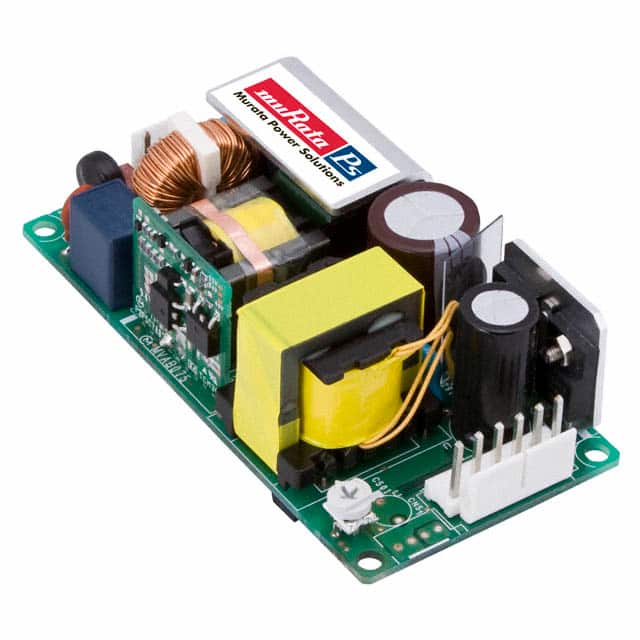

The Murata MVAB120-48 is an open frame AC DC converter designed for ITE (Commercial) applications. It provides a power output of 75W, with a higher 120W rating under forced air cooling.
This converter features a universal input and Power Factor Correction (PFC). It is designed for chassis mounting and has dimensions of 101.6mm x 50.8mm x 28.5mm. The operating temperature range is -10°C to 50°C.
Key electrical specifications include an isolation voltage of 3 kV and a current rating of 2.5 A. The efficiency is rated at 91%.
Compliance includes RoHS3, with MSL 1 and REACH unaffected status. Approval agencies include CB, CE, cURus, and DEMKO.
Chassis mount, dimensions 101.6mm x 50.8mm x 28.5mm.
-10°C to 50°C.
91%.
3 kV.
2.5 A.
75W (120W with forced air cooling).
CB, CE, cURus, DEMKO.
