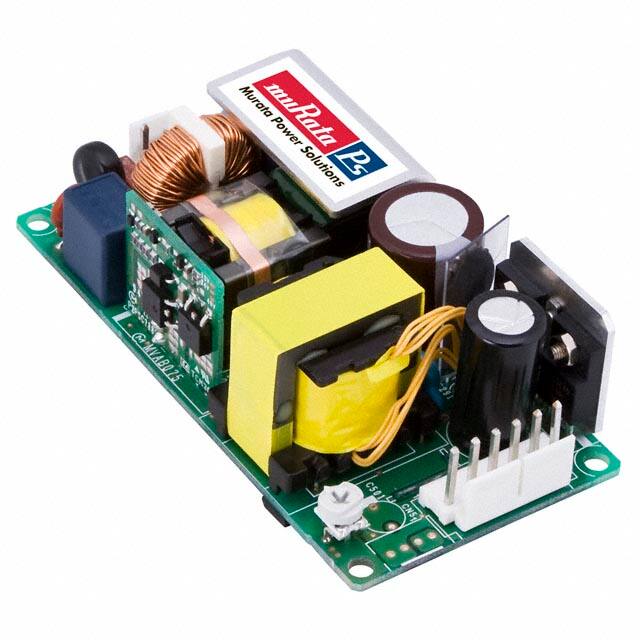

The Murata MVAB120-24 is an Open Frame AC DC Converter designed for ITE (Commercial) applications. It provides a 75W power output, with a nominal 24V output voltage and a maximum output current of 5A. The converter operates with a universal input voltage range of 90-264 VAC and features Power Factor Correction (PFC).
Key electrical specifications include 90% efficiency and 3kV isolation voltage. The operating temperature range is -10°C to 50°C. This model is designed for chassis mounting and includes features such as PFC and Universal Input.
With its robust design and compliance with various approval agencies like CB, CE, cURus, and DEMKO, the MVAB120-24 is suitable for a wide range of commercial power supply needs. Its compact dimensions (101.6mm x 50.8mm x 28.5mm) facilitate integration into various systems.
The Murata MVAB120-24 has a power output of 75W, with a potential for 120W with forced air.
The output voltage for the MVAB120-24 is 24V.
The maximum output current for the MVAB120-24 is 5A.
The operating temperature range for the MVAB120-24 is -10°C to 50°C.
The MVAB120-24 uses chassis mount.
The dimensions are 101.6mm x 50.8mm x 28.5mm.
Yes, the MVAB120-24 is RoHS3 Compliant.
