| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

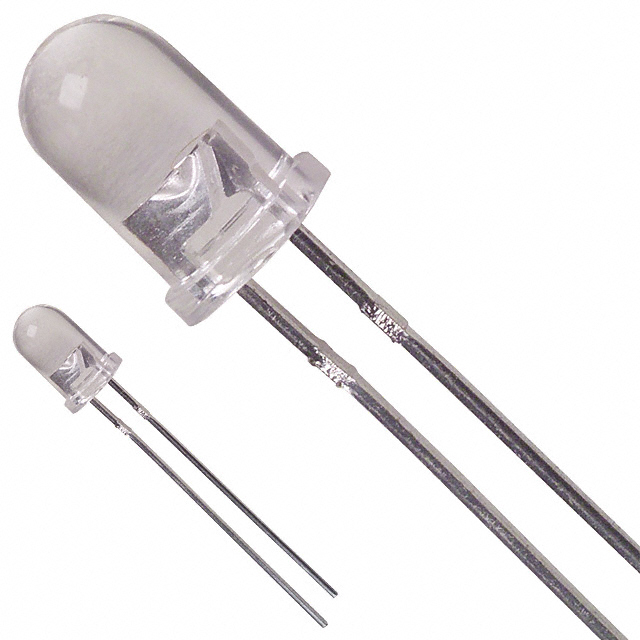

The Everlight Electronics MV8104 is a discrete LED designed for indication purposes. It features a red light emission with a clear, colorless lens and a round, domed top style. The LED is housed in a T-1 3/4 (5mm) package suitable for through-hole mounting.
Key electrical characteristics include a typical forward voltage of 1.7V and a test current of 20mA, producing a luminous intensity of 1500mcd. The peak wavelength is 660nm, and it has a typical viewing angle of 20 degrees. The maximum height of the component is 8.90mm.
This LED is suitable for various general indication applications where a red light output is required. Its through-hole mounting makes it easy to integrate into breadboards or traditional PCB designs. The standard configuration and clear lens ensure a focused light output.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the MV8104 LED is 1.7V.
The typical luminous intensity of the MV8104 LED is 1500mcd.
The peak wavelength of the MV8104 LED is 660nm.
The typical viewing angle of the MV8104 LED is 20 degrees.
The MV8104 LED uses a T-1 3/4 (5mm) package.
The MV8104 LED is designed for through-hole mounting.
