Mfr Part #:

MUSB-05-S-AB-SM-A

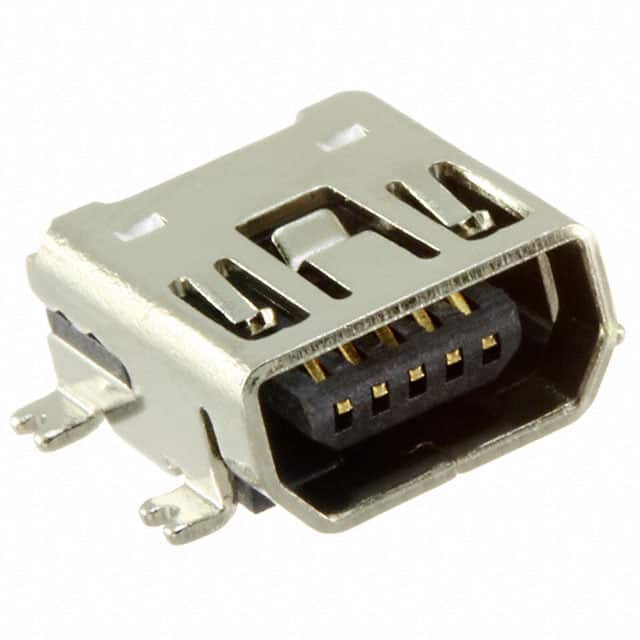

Name: MUSB-05-S-AB-SM-A
Brand: Samtec Inc.
SKU: MUSB-05-S-AB-SM-A

Mfr Name: Samtec Inc.

Description:

CONN RCPT USB2.0 MINI AB SMD R/A

Stock on Request

MUSB-05-S-AB-SM-A Description

Short technical summary and product information.

CONN RCPT USB2.0 MINI AB SMD R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	USB, DVI, HDMI Connector Assemblies
Manufacturer Name	Samtec Inc.
Connector Type	USB - mini AB
Features	Board Guide, Solder Retention
Gender	Receptacle
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Right Angle
Number of Contacts	5
Number of Ports	1
Operating Temperature	-50°C ~ 85°C
Shielding	Unshielded
Specifications	USB 2.0
Termination	Solder
Voltage	30V
