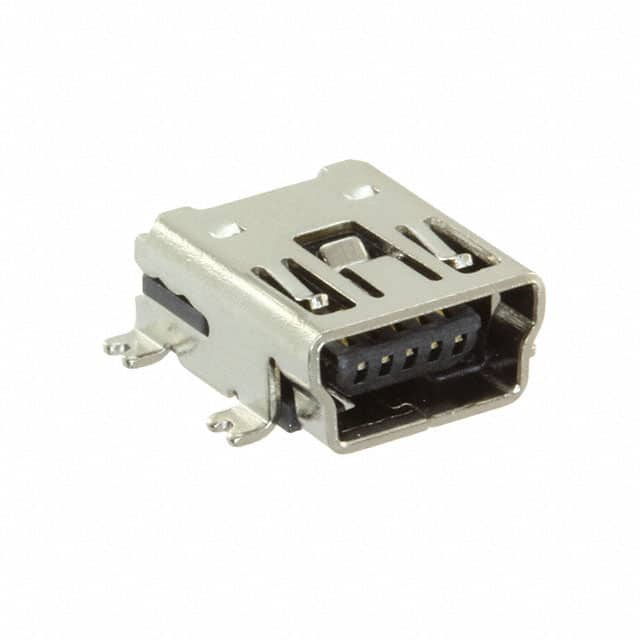

The Samtec MUSB-05-F-B-SM-A is a Mini USB 2.0 Type-B receptacle connector designed for compact, high-reliability interconnects. It features 5 contacts in a single port, with a receptacle gender and a surface mount, right-angle mounting style.
This connector is rated for 30 V and supports an operating temperature range of -50°C to +85°C, making it suitable for a wide variety of environments. The unshielded shell is made of brass with nickel plating, while the contacts are phosphor bronze with gold plating on the mating area and tin on the tails. The insulator is made of high temperature thermoplastic.
Designed for durability, the connector can withstand 1500 mating cycles. It includes board guide and solder retention features for reliable assembly. Packaging is in bulk trays, with tape and reel options available.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.15 | $1.15 |
| 50+ | $0.94 | $0.94 |
| 100+ | $0.76 | $0.76 |
| 500+ | $0.74 | $0.74 |
| 1,000+ | $0.66 | $0.66 |
| 2,000+ | $0.55 | $0.55 |
| 5,000+ | $0.47 | $0.47 |
| 10,000+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 30 V.
-50°C to +85°C.
1500 cycles.
Surface mount, right-angle.
Yes, RoHS3 Compliant.
Gold on the mating area, tin on the tails.
