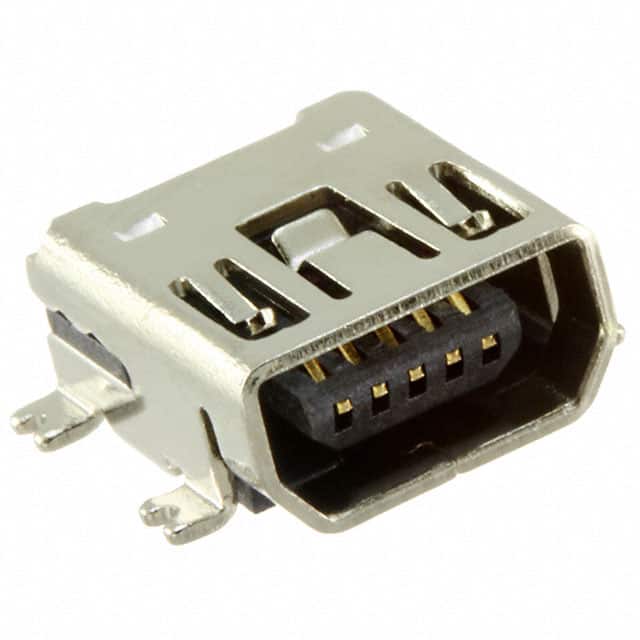

The MUSB-05-F-AB-SM-A-K-TR is a Mini USB 2.0 Type AB receptacle from Samtec Inc. It features a 5-contact, single port design in a surface mount, right angle orientation. The connector is unshielded and includes board guide, pick and place, and solder retention features for automated assembly. The insulator is made of high temperature thermoplastic, contacts are phosphor bronze with gold plating on mating area, tin on tails, and nickel on shell. It is rated for 30 V RMS and has an operating temperature range of -50°C to 85°C. The connector is rated for 1500 mating cycles. It is packaged in tape and reel with 550 pieces per reel. This connector is RoHS3 compliant, halogen free, and MSL Level 1. It is suitable for applications requiring a compact USB 2.0 interface in a right-angle SMD footprint.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
| 50+ | $1.40 | $1.40 |
| 100+ | $1.19 | $1.19 |
| 550+ | $1.06 | $1.06 |
| 1,100+ | $0.91 | $0.91 |
| 1,650+ | $0.84 | $0.84 |
| 4,950+ | $0.71 | $0.71 |
| 9,900+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
USB 2.0
5 contacts
Surface mount, right angle
30 V RMS
-50°C to 85°C
1500 cycles
Yes, RoHS3 compliant
