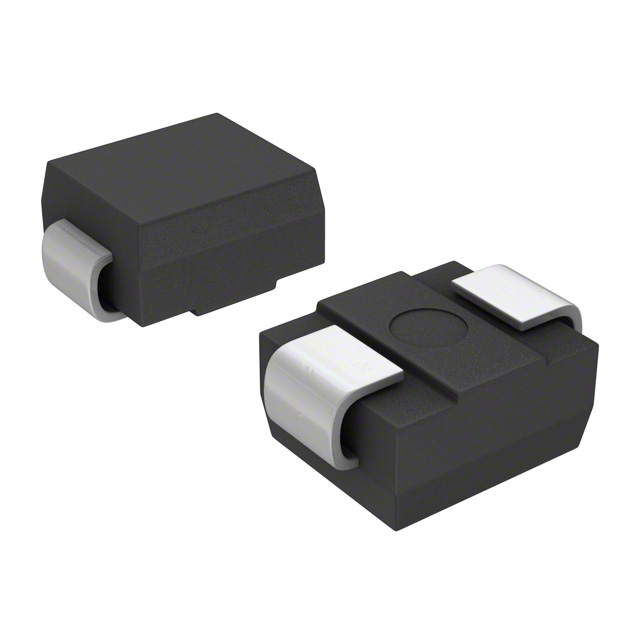

The MURS120HE3_A/H is a surface-mount ultrafast plastic rectifier from Vishay General Semiconductor, designed for high-frequency rectification and freewheeling applications in switching mode converters and inverters. It features a glass passivated pellet chip junction for reliable operation.
Key electrical specifications include a maximum repetitive peak reverse voltage (VRRM) of 200V, an average rectified current of 2.0A at TL=145°C (1.0A at TL=155°C), and a low forward voltage of 0.875V at 1A (25°C). The device offers an ultrafast reverse recovery time (trr) of 25 ns, enabling low switching losses and high efficiency.
The diode is housed in a DO-214AA (SMB) package with matte tin plated terminals, suitable for automated placement. It meets MSL level 1 per J-STD-020 and has a maximum junction temperature of 175°C. The HE3 suffix indicates AEC-Q101 qualification for automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.96 | $0.96 |
| 10+ | $0.60 | $0.60 |
| 100+ | $0.39 | $0.39 |
| 500+ | $0.28 | $0.28 |
| 750+ | $0.24 | $0.24 |
| 2,250+ | $0.23 | $0.23 |
| 4,500+ | $0.21 | $0.21 |
| 24,750+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive peak reverse voltage is 200V.
The average rectified current is 2.0A at TL=145°C and 1.0A at TL=155°C.
The forward voltage is 0.875V maximum at 1A and 25°C, and 0.71V maximum at 1A and 150°C.
The reverse recovery time is 25 ns maximum.
It comes in a surface-mount DO-214AA (SMB) package.
Yes, the HE3 suffix indicates AEC-Q101 qualification for automotive applications.
The maximum operating junction temperature is 175°C.
