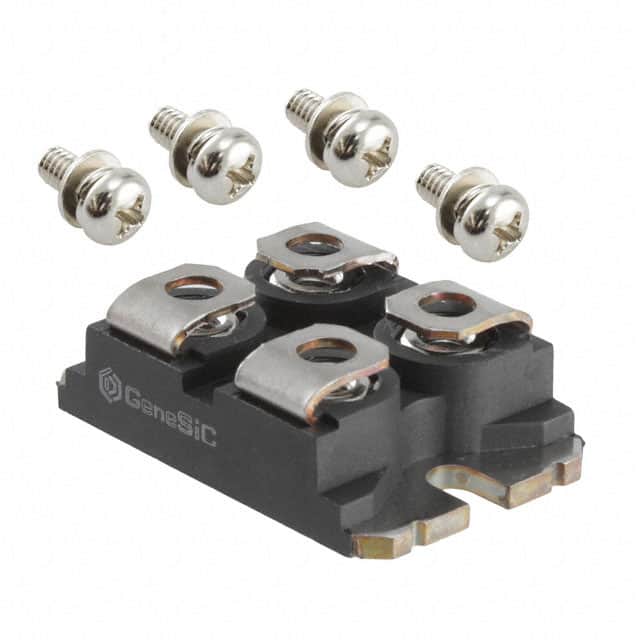

MUR2X060A02 The MUR2X060A02 is a 200V, 120A super fast recovery rectifier module from GeneSiC Semiconductor. It features two independent diodes in a SOT-227 chassis mount package with an electrically isolated base plate.
Mfr Part #:

MUR2X060A02

Available from 1 distributors
Mfr Name: GeneSiC Semiconductor
GeneSiC Semiconductor
The MUR2X060A02 is a 200V, 120A super fast recovery rectifier module from GeneSiC Semiconductor. It features two independent diodes in a SOT-227 chassis mount package with an electrically isolated base plate.
✓ Total Stock: 12 pcs
$ Price Range: $5.95 - $7.53

MUR2X060A02 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MUR2X060A02 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Diode Configuration
Halogen Free
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Reverse Recovery Time (trr)
SVHC Present
Speed
Storage Temperature
Supplier Device Package
Technology
Voltage
View Similar Products (0)

MUR2X060A02 Description

Short technical summary and product information.

The MUR2X060A02 is a super fast recovery rectifier module from GeneSiC Semiconductor, designed for high-efficiency power conversion applications. It contains two independent standard recovery diodes in a single SOT-227 miniBLOC package, rated for a maximum reverse voltage of 200 V and an average forward current of 120 A at a case temperature of 125°C.



Key electrical specifications include a maximum forward voltage of 1.0 V at 60 A, a fast reverse recovery time of 75 ns, and a high surge current capability of 900 A per leg. The module features an electrically isolated base plate for simplified heatsinking and an isolation voltage rating of 2500 V AC.



The device is chassis mount and operates over a junction temperature range of -55°C to 175°C. With its fast switching speed and high current rating, the MUR2X060A02 is suitable for use in power supplies, motor drives, and other industrial power conversion circuits.

MUR2X060A02 Quick Information

Product Type: Fast Recovery Rectifier Module
Series: MUR2X
Canonical Name: MUR2X060A02 Super Fast Recovery Rectifier Module
Subcategory: Rectifier Diode Array

MUR2X060A02 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

MUR2X060A02 Estimated Pricing

Qty Low High
1+ $7.53 $7.53
10+ $6.96 $6.96
100+ $5.95 $5.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

MUR2X060A02 Features

  • 200V maximum reverse voltage rating.
  • 120A average forward current at 125°C.
  • 75ns fast reverse recovery time.
  • 900A peak forward surge current capability.
  • SOT-227 chassis mount with isolated base plate.

MUR2X060A02 Applications

  • Used in high-frequency power supply rectifiers.
  • Suitable for motor drive freewheeling diodes.
  • Ideal for uninterruptible power supply (UPS) circuits.
  • Applied in industrial power conversion systems.

MUR2X060A02 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage (VRRM) of the MUR2X060A02?

The maximum reverse voltage (VRRM) is 200 V.

What is the average forward current rating of the MUR2X060A02?

The average forward current (IF(AV)) is 120 A at a case temperature of 125°C.

What is the forward voltage drop of the MUR2X060A02?

The maximum forward voltage (VF) is 1.0 V at a forward current of 60 A and junction temperature of 25°C.

What is the reverse recovery time of the MUR2X060A02?

The maximum reverse recovery time (trr) is 75 ns.

What package is the MUR2X060A02 available in?

The MUR2X060A02 is available in a SOT-227-4, miniBLOC package for chassis mount installation.

What is the operating temperature range of the MUR2X060A02?

The operating temperature range is -55°C to 175°C.

Does the MUR2X060A02 have an isolated base plate?

Yes, the module features an electrically isolated base plate and has an isolation voltage rating of 2500 V AC.
