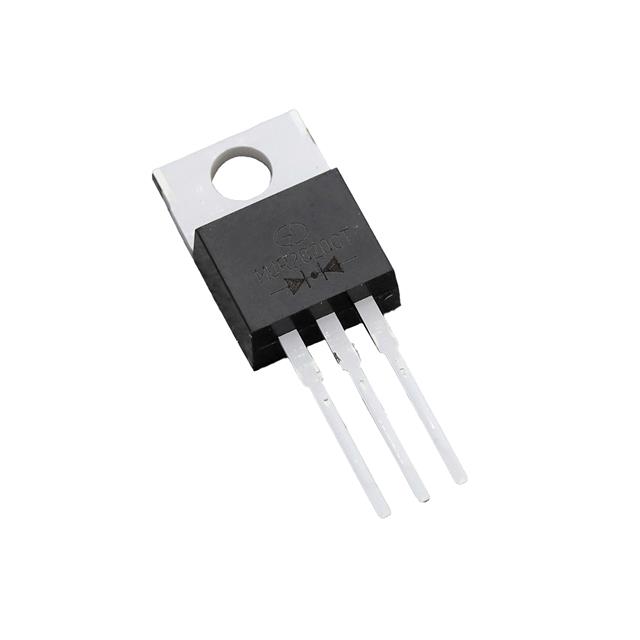

MUR2020CT MUR2020CT is a fast recovery rectifier array featuring 1 pair common cathode diodes with 200V maximum DC blocking voltage and 20A total average rectified current. It is packaged in a through-hole TO-220-3 case.
Mfr Part #:

MUR2020CT

Available from 1 distributors
Mfr Name: Yangzhou Yangjie Electronic Technology Co.,Ltd
Yangzhou Yangjie Electronic Technology Co.,Ltd
MUR2020CT is a fast recovery rectifier array featuring 1 pair common cathode diodes with 200V maximum DC blocking voltage and 20A total average rectified current. It is packaged in a through-hole TO-220-3 case.
✓ Total Stock: 8,745 pcs

MUR2020CT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
8,745 pcs
On Request
8745 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MUR2020CT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Lead Style
Mounting Type
Operating Temperature
Reverse Recovery Time (trr)
Speed
Supplier Device Package
Technology
Voltage
Weight
View Similar Products (0)

MUR2020CT Description

Short technical summary and product information.

The MUR2020CT is a super fast recovery rectifier array from Yangzhou Yangjie, consisting of a pair of common cathode diodes. It is designed for high efficiency operation with a low forward voltage drop of 1.10V at 10A and 25°C.



It has a maximum DC blocking voltage of 200V and a total average rectified current of 20A (10A per diode). The reverse recovery time is 35ns under test conditions (If=0.5A, Ir=1.0A, Irec=0.25A). The device can handle a peak forward surge current of 125A per diode.



The device is housed in a TO-220-3 through-hole package with a TO-220AB supplier device package. It has a weight of 1.9g and is rated for operating temperatures from -55°C to 150°C. The thermal resistance from junction to case is 2.0°C/W per leg.



The MUR2020CT uses FRED (Planar) wafer construction to achieve fast recovery characteristics. It is suitable for applications requiring high frequency rectification and low power losses. The product is packed in tubes of 50 units.

MUR2020CT Quick Information

Product Type: Rectifier Array
Canonical Name: MUR2020CT Fast Recovery Rectifier Array, 1 Pair Common Cathode, 200V, 20A, TO-220-3
Subcategory: Rectifier Arrays

MUR2020CT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected

MUR2020CT Features

  • 1 Pair common cathode diode configuration.
  • 200V maximum DC blocking voltage.
  • 20A total average rectified current.
  • 35ns fast reverse recovery time.
  • Through-hole TO-220-3 package.

MUR2020CT Applications

  • Used in high-frequency switching power supplies.
  • Suitable for freewheeling diode applications.
  • Ideal for power factor correction circuits.
  • Applicable in DC-DC converters and inverters.

MUR2020CT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum DC blocking voltage of the MUR2020CT?

200V.

What is the average rectified current rating?

20A total, 10A per diode.

What is the forward voltage drop at 10A?

1.10V maximum at 25°C, 1.00V maximum at 125°C.

What is the reverse recovery time?

35 ns maximum at If=0.5A, Ir=1.0A, Irec=0.25A.

What package is the MUR2020CT available in?

TO-220-3 through-hole package (TO-220AB supplier device package).

What is the operating temperature range?

-55°C to 150°C.

What is the peak forward surge current?

125A per diode for 8.3ms single half sine-wave.
