| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

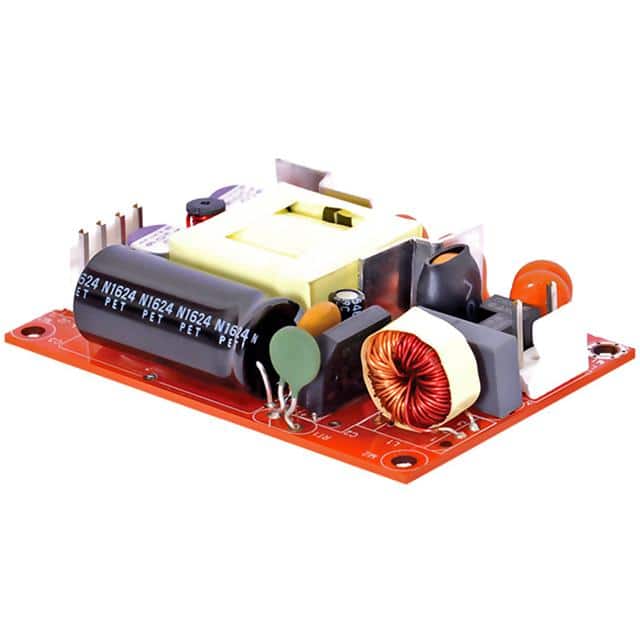

The EOS Power MULP40-1324 is a 40-watt AC/DC power supply designed for medical applications. It offers a single 24V output with a maximum current of 1.67A and an efficiency of 85% typical.
This open-frame converter features universal input voltage (85-264 VAC) and a compact form factor measuring 3.00 x 2.00 x 0.75 inches. It operates within a wide temperature range of -40°C to 70°C and boasts high reliability with an MTBF of 2 million hours.
Safety approvals include EN60601 3rd Edition and IEC60601-1-2:2014 (4th Edition), making it suitable for demanding medical environments. Additional features include dual fusing, low no-load power consumption (<0.3W), and robust protection circuits.
The output voltage is 24V.
The maximum output current is 1.67A.
The typical efficiency is 85%.
The operating temperature range is -40°C to 70°C.
It meets EN60601 3rd Edition and IEC60601-1-2:2014 (4th Edition) standards.
