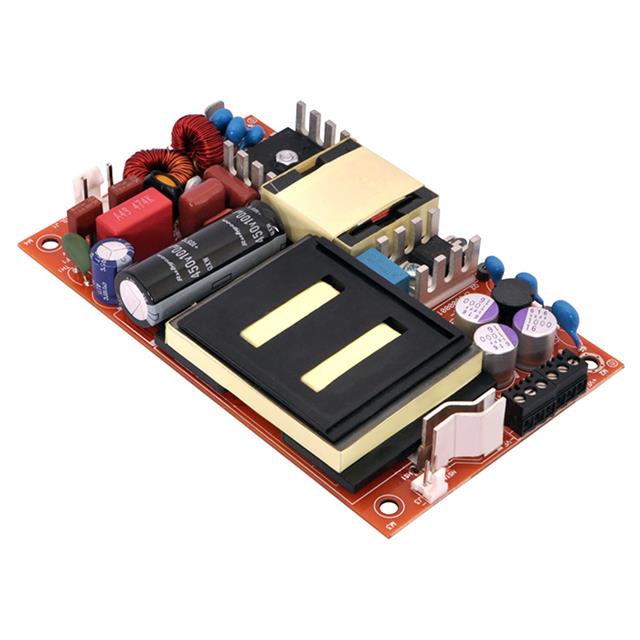

The EOS Power MULP275-1330 is an external/internal AC to DC converter designed for reliable power conversion. This open-frame unit provides a single output of 30V at 160W, with a peak power capability of 275W under forced air conditions. It operates with an input voltage range of 80 to 264 VAC and features 90% efficiency.
Key features include adjustable output, Power Factor Correction (PFC), standby output, and universal input. The converter offers an isolation voltage of 4 kV and is designed for chassis mounting. Its dimensions are 127.0mm x 76.2mm x 19.1mm.
This AC/DC converter is approved by agencies including CB, CE, cUL, NEMKO, and UL, making it suitable for various applications, particularly in the medical field. The operating temperature range is -40°C to 70°C with derating.
The output voltage is 30V.
The power rating is 160W, with a 275W rating under forced air conditions.
The input voltage range is 80 to 264 VAC.
The operating temperature range is -40°C to 70°C, with derating.
The dimensions are 127.0mm x 76.2mm x 19.1mm.
Approval agencies include CB, CE, cUL, NEMKO, and UL.
