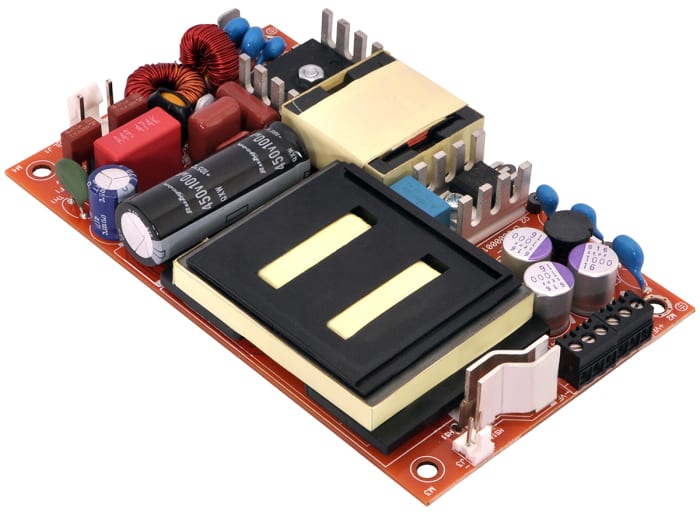

The EOS Power MULP275-1024 is an open frame, medical-grade switch mode power supply designed for high-efficiency power conversion. It provides a stable 24V DC output at 6.67A, delivering up to 275W with forced air cooling. The power supply features a universal input voltage range from 80V ac to 390V dc, making it suitable for global applications.
With a compact form factor of 5 x 3 x 0.75 inches, this series is ideal for height-restricted environments. It boasts up to 92% efficiency and operates across a wide temperature range of -40°C to 70°C. Key features include adjustable output, Power Factor Correction (PFC), a standby output, and a thermal shut-down feature for enhanced safety and reliability. The MULP275-1024 meets various safety and compliance standards, including CE, cUL, NEMKO, and UL.
This power supply is suitable for medical applications (BF) and commercial-grade power solutions. Its open frame design allows for easy integration into systems requiring efficient power conversion where space is a constraint. The unit also includes dual fusing and a 12V/0.5A fan output.
The maximum output voltage is 24V dc.
The output current is 6.67A.
The power rating is 275W with forced air cooling.
The input voltage range is from 80V ac to 390V dc.
The efficiency is up to 92%.
The operating temperature range is -40°C to 70°C.
The dimensions are 127mm x 76.2mm x 19.05mm.
