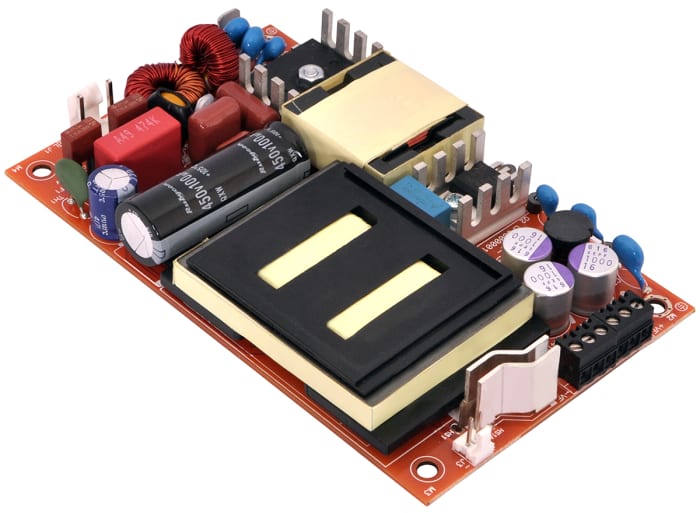

The EOS Power MULP275-1012 is an open-frame switching power supply designed for medical applications. It delivers a 12V dc output at 13.33A, providing up to 275W of power with forced air cooling.
This power supply features a universal input range of 80V ac to 390V dc and offers high efficiency up to 92%. It operates within a wide temperature range of -40°C to 70°C. The compact dimensions of 127mm x 76.2mm x 19.1mm make it suitable for height-restricted environments.
Key features include adjustable output, Power Factor Correction (PFC), a standby output, and thermal shut-down protection. The MULP275-1012 is compliant with RoHS3 standards and has an MSL 1 rating.
The output voltage is 12V dc.
The maximum output current is 13.33A.
The power rating is 275W with forced air cooling.
The input voltage range is 80V ac to 390V dc.
The operating temperature range is -40°C to 70°C.
The dimensions are 127.0mm x 76.2mm x 19.1mm.
The RoHS status is RoHS3 Compliant.
