| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

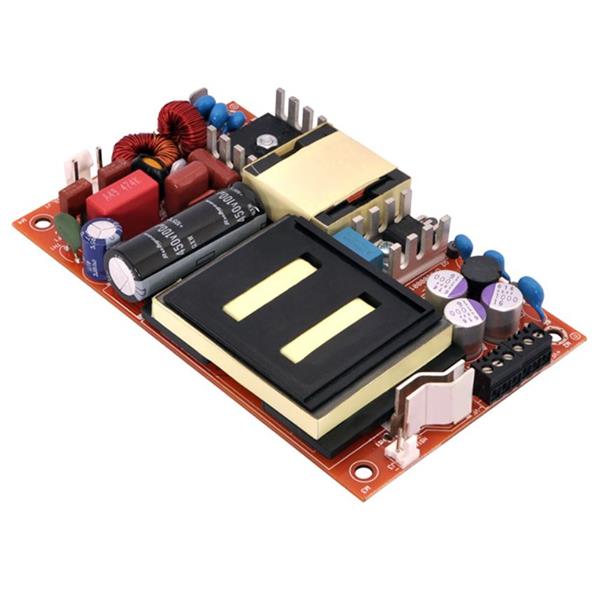

This EOS Power MULP275-0330 is an AC/DC power supply module designed for various applications, including medical. It features an open frame construction and chassis mount type.
The module delivers a stable 30 VDC output at 5.33 A, providing a nominal power of 160W, which can be boosted to 275W with forced air. It accepts a wide input voltage range of 80 to 264 VAC and operates efficiently at 90% typical.
Key electrical specifications include an isolation voltage of 4 kVAC and a regulated load. The operating temperature range is from -40°C to +70°C with derating. Its dimensions are 127 mm in length, 88.9 mm in width, and 19.1 mm in height.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. The unit is approved by CB, CE, cUL, NEMKO, and UL.
The output voltage is 30 VDC.
The output current is 5.33 A.
The input voltage range is 80 VAC to 264 VAC, with 390 VDC input also supported.
Nominal output power is 160 W, with a maximum of 275 W under forced air cooling.
The operating temperature range is -40°C to +70°C with derating.
The converter uses an open-frame package with chassis mounting.
Typical efficiency is 90%.
