| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

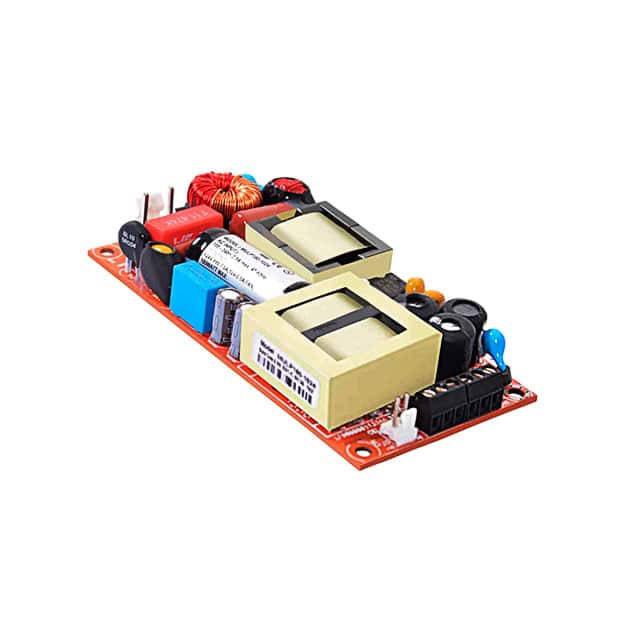

The EOS Power MULP180-1315-2 is an AC/DC converter designed for various applications, including medical use. It features an open frame construction and chassis mount type, making it suitable for integration into larger systems.
This converter provides a single 15V output with a maximum current of 8A, delivering 120W of power (180W with forced air). It operates with an efficiency of 88% and accepts a wide input voltage range of 80-264 VAC or 390VDC. Key features include adjustable output, PFC, standby output, and universal input capability.
The operating temperature range is -40°C to 70°C with derating. The unit has an isolation voltage of 4kV and is approved by agencies such as CB, CE, cUL, NEMKO, and UL, ensuring compliance with safety standards.
The output voltage is 15V.
The maximum output current is 8A.
The power rating is 120W, or 180W with forced air.
The operating temperature range is -40°C to 70°C with derating.
It uses chassis mount.
Key features include adjustable output, PFC, standby output, and universal input.
It is approved by CB, CE, cUL, NEMKO, and UL.
