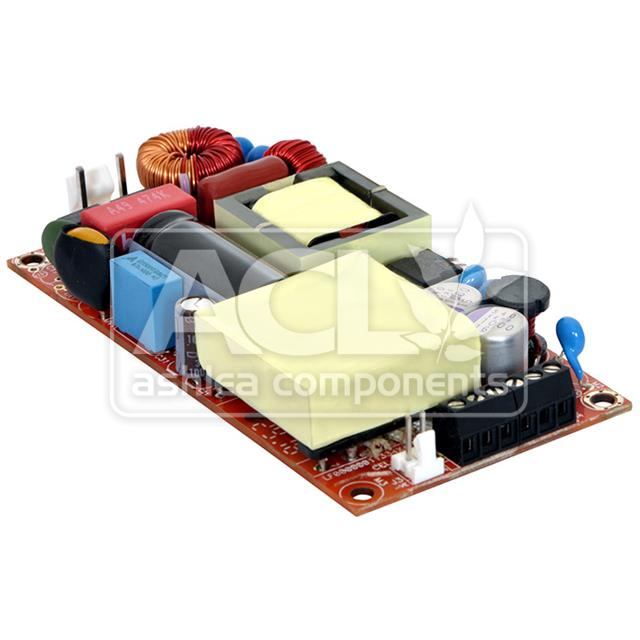

The EOS Power MULP180-1315 is a 180W switch mode power supply (SMPS) with an open-frame construction. It provides a regulated 15V DC output and is specifically engineered for embedded applications that require medical-grade safety certifications.
Key electrical specifications include an output power of 180W (with forced air), an output current of 8A, and a universal input voltage range. The power supply boasts an efficiency of 88% and offers features such as adjustable output, PFC, and a standby output. It also includes isolation voltage of 4 kV.
Mechanically, the unit measures 101.6mm in length, 50.8mm in width, and 19.1mm in height. It is designed for chassis mounting. The operating temperature range is -40°C to 70°C with derating.
This power supply is suitable for integration into a variety of healthcare devices, including patient monitoring equipment, medical imaging systems, and laboratory analyzers, due to its compact design and compliance with medical standards.
15V.
Chassis mount, open frame.
-40°C to 70°C with derating.
180W with forced air cooling (120W natural convection).
8A.
88%.
101.6mm x 50.8mm x 19.1mm (4.00" x 2.00" x 0.75").
