| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

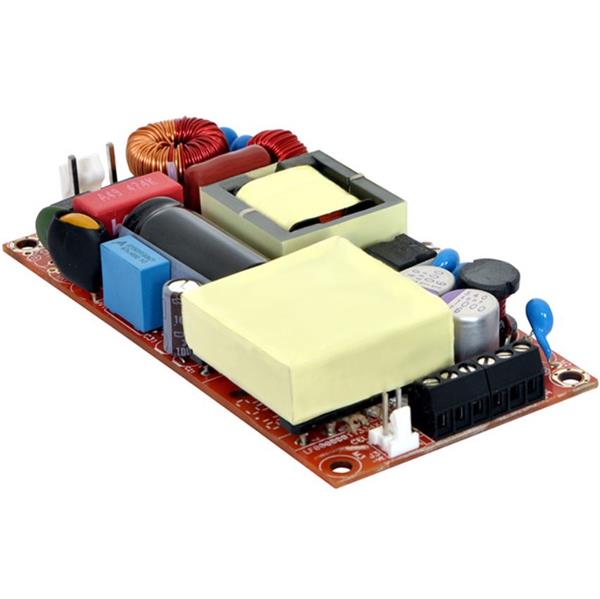

The EOS Power MULP180-1024 is a versatile AC-DC power module designed for various applications, particularly in the medical industry. It delivers an output power of 180W with a regulated 24VDC output voltage and a maximum output current of 7.5A.
This power module operates with an input voltage range of 80 VAC to 264 VAC or 390 VDC, and an input frequency of 47 Hz to 63 Hz. It boasts a high efficiency of 90% and features like adjustable output, PFC, standby output, and universal input. The isolation voltage is rated at 4 kVAC.
With a compact open frame design, the MULP180-1024 is suitable for chassis mounting. Its dimensions are 101.6mm in length, 50.8mm in width, and 19.05mm in height. The operating temperature range is from -40°C to +70°C, with derating. It is RoHS3 compliant and has an MSL rating of 1.
Key specifications include a single output, load regulation, and approval by agencies such as CB, CE, cUL, NEMKO, and UL, making it a reliable choice for demanding applications.
The output voltage for Channel 1 is 24 VDC.
The output current for Channel 1 is 7.5 A.
The output power is 180 W.
The input voltage range is 80 VAC to 264 VAC, and 390 VDC.
The operating temperature range is -40°C to 70°C (With Derating).
The mounting style is Chassis.
Yes, the RoHS Status is RoHS3 Compliant.
