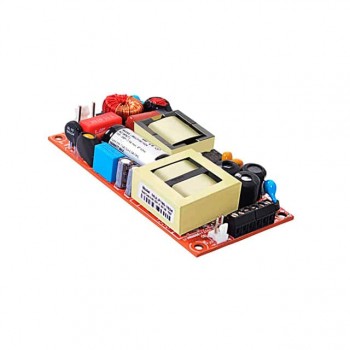

The EOS Power MULP180-1012 is an AC/DC converter designed for medical applications. It features an open frame construction and chassis mount type, making it suitable for integration into various systems.
This converter operates with an input voltage range of 80 to 264 VAC or 390VDC, providing a stable 12V output at a maximum current of 10A. It delivers 120W of power, with a higher 180W rating under forced air conditions, and boasts an efficiency of 88%.
Key features include adjustable output, power factor correction (PFC), a standby output, and universal input. The device has an isolation voltage of 4 kV and operates within a temperature range of -40°C to 70°C with derating. Its dimensions are 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm).
Compliance is indicated by approval agencies such as CB, CE, cUL, NEMKO, and UL. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is REACH Unaffected.
The input voltage range is 80 to 264 VAC or 390VDC.
The package is an open frame, chassis mount, supplied in bulk.
-40°C to 70°C with derating.
12V.
10A.
120W convection, 180W with forced air.
CB, CE, cUL, NEMKO, UL.
