MULP180-1324
EOS Power
The EOS Power MULP180-1324 is an open-frame AC/DC converter with 120W output power and 90% efficiency. It features universal input and adjustable output.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

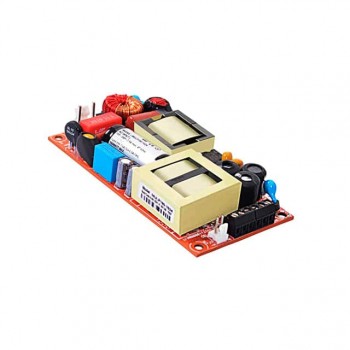

The EOS Power MULP180-0024 is an open frame AC DC converter suitable for medical applications. It features a universal input voltage range of 80-264 VAC and a 390VDC input option.
This converter delivers a single 24V output with a maximum current of 5A, providing up to 120W of power, or 180W with forced air. Key electrical specifications include an isolation voltage of 4 kV and an efficiency of 90%. The operating temperature range is -40°C to 70°C with derating.
Designed for ease of integration, the MULP180-0024 has a chassis mount type and compact dimensions of 101.6mm x 63.5mm x 19.1mm. Features include adjustable output, PFC, standby output, and universal input capabilities. It is approved by CB, CE, cUL, NEMKO, and UL agencies.
This model is RoHS3 Compliant, has an MSL of 1 Unlimited, and is REACH Unaffected. It is part of the MULP180 series.
The MULP180-0024 provides a single output of 24V at 5A.
It is rated for 120W continuous power, or 180W with forced air cooling.
The input voltage range is 80 to 264 VAC, or 390 VDC.
The operating temperature range is -40°C to 70°C with derating.
It uses chassis mount installation.
The dimensions are 101.6mm x 63.5mm x 19.1mm (4.00" x 2.50" x 0.75").
It is approved by CB, CE, cUL, NEMKO, and UL.
