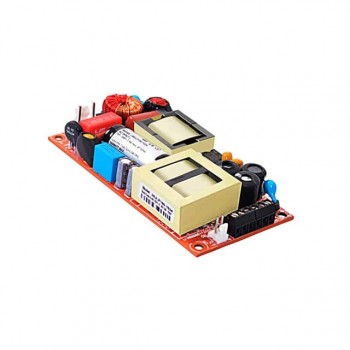

The EOS Power MULP180-0015 is an AC DC converter designed for medical applications. It operates with an input voltage range of 80 to 264 VAC or 390VDC and provides a single output of 15V at a maximum current of 8A.
This converter delivers 120W of power, with a forced air rating of 180W. It boasts an efficiency of 88% and features like adjustable output, PFC, standby output, and universal input. The isolation voltage is rated at 4 kV.
Designed for chassis mounting, the MULP180-0015 has dimensions of 4.00" L x 2.50" W x 0.75" H (101.6mm x 63.5mm x 19.1mm). It operates within a temperature range of -40°C to 70°C with derating. Approval agencies include CB, CE, cUL, NEMKO, and UL.
The input voltage range is 80 to 264 VAC or 390VDC.
It provides a single 15V output at up to 8A.
Continuous power is 120W, and 180W with forced air cooling.
The operating temperature range is -40°C to 70°C with derating.
It is chassis mount and comes in bulk packaging. Dimensions are 101.6mm x 63.5mm x 19.1mm.
The isolation voltage is 4kV.
Efficiency is 88%.
