| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

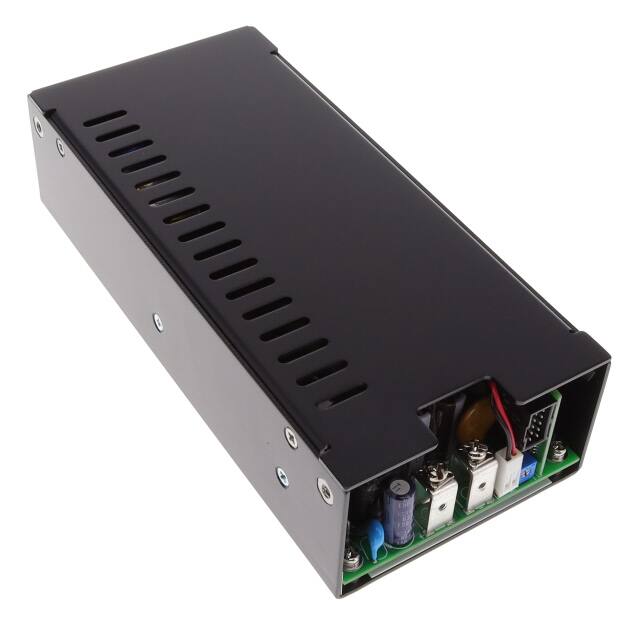

The SL Power Electronics MU425S48EF is a high-performance AC/DC converter delivering up to 425W of air-cooled power or 300W of convection power. It features a universal input range of 90-264VAC, making it suitable for global applications. The converter provides a 48V main output and includes a 5V standby output and a 12V fan output.
Designed for demanding environments, this converter boasts 88% typical efficiency and meets stringent medical application requirements, including approval to CSA/EN/IEC/UL60601-1 standards with 2 MOPP isolation. It also meets EN61000-4-2, EN61000-4-3, and EN61000-4-6 requirements for EMI/EMC.
The MU425S48EF is built with a chassis mount type and an enclosed form factor, measuring 157.5mm x 83.8mm x 41.1mm. Key features include adjustable output, Power Factor Correction (PFC), remote sense, and standby output. It operates within a temperature range of -10°C to 70°C with derating. This model is RoHS3 compliant and has an MSL of 1.
The MU425S48EF provides up to 425W of air-cooled power and 300W of convection power.
The converter features a universal input range of 90-264VAC.
The main output voltage is 48V, with a maximum current of 5.9A in convection and 8.4A with 200 LFM air cooling.
The operating temperature range is -10°C to 70°C with derating.
It is approved to CSA/EN/IEC/UL60601-1, 3rd Edition, with 2 MOPP isolation.
Yes, the status is RoHS3 Compliant.
