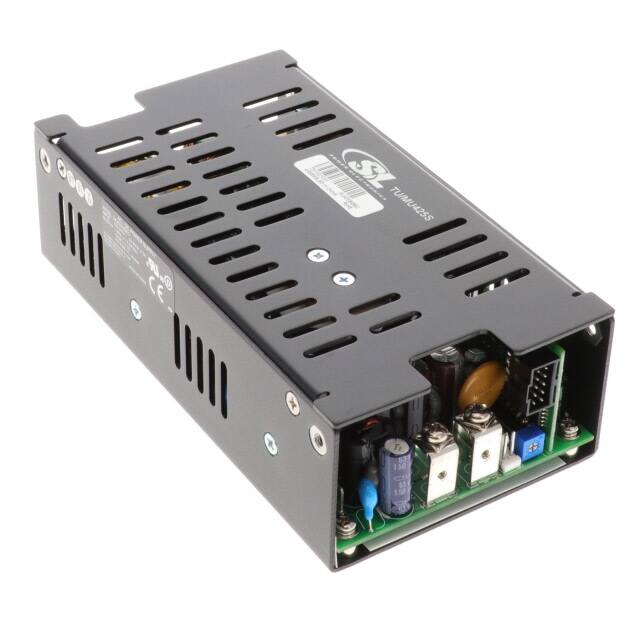

This SL Power Electronics MU425S48EC is a single-output AC DC converter designed for medical applications. It features an enclosed chassis mount package and operates with a universal input voltage range of 90-264 VAC.
The converter provides a 48V output with a convection power rating of 283W, which can be increased to 403W with forced air cooling. It boasts a typical efficiency of 88% and includes features such as PFC, remote sense, and a standby output.
With dimensions of 6.20" L x 3.30" W x 1.62" H, the MU425S48EC is suitable for integration into various systems. It meets CE approval standards and operates within a temperature range of -10°C to 70°C with derating.
The output voltage is 48V.
The output current is 5.9A.
It provides 283W of convection power and up to 403W with forced air.
The typical efficiency is 88%.
The operating temperature range is -10°C to 70°C with derating.
Key features include adjustable output, PFC, remote sense, standby output, and universal input.
It is designed for medical applications.
