| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

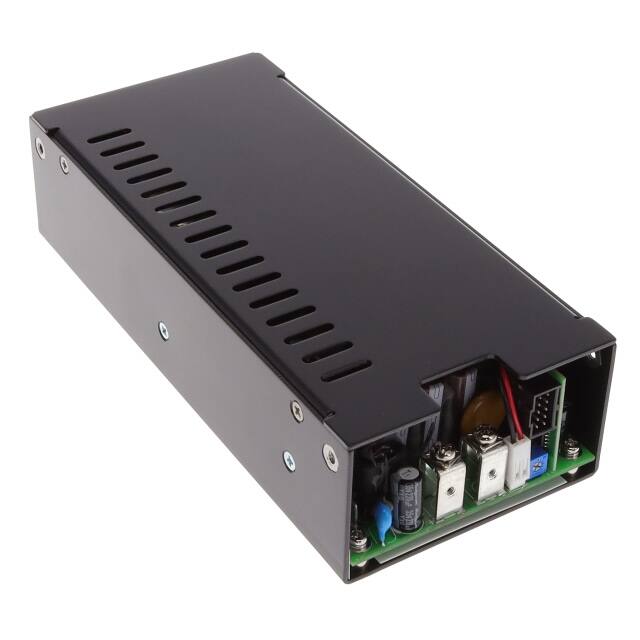

The SL Power Electronics MU425S24EF is an enclosed AC/DC converter with a chassis mount type. It provides a 24V nominal output voltage and can deliver up to 286W of power under convection cooling, increasing to 403W with forced air. The unit features universal input ranging from 90-264VAC and boasts a typical efficiency of 88%.
Designed for demanding applications, this converter includes features such as adjustable output, power factor correction (PFC), remote sense, and a standby output. It operates within a temperature range of -10°C to 70°C with derating. The dimensions are 157.5mm x 83.8mm x 41.1mm (6.20" x 3.30" x 1.62").
This model is approved by CE and meets standard 60601-1, making it suitable for medical applications. It also meets specific EMI/EMC requirements for home healthcare, including EN61000-4-2, EN61000-4-3, and EN61000-4-6.
The output voltage is 24V.
The maximum output current under convection cooling is 11.9A.
The power rating is 403W with forced air cooling.
The typical efficiency is 88%.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 157.5mm x 83.8mm x 41.1mm.
It is approved by CE and meets standard 60601-1.
