| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

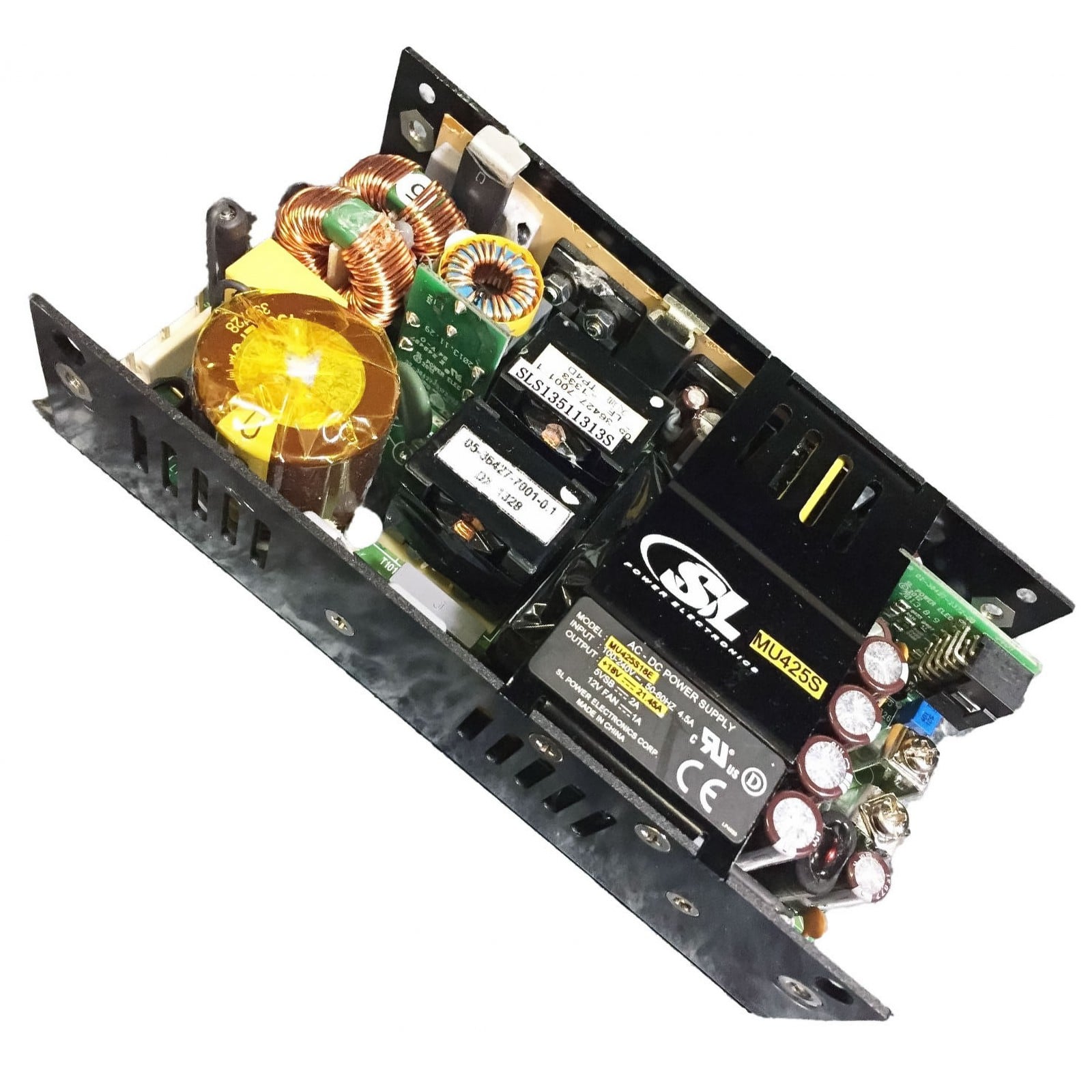

The SL Power Electronics MU425S18E is a 425W single-output AC/DC converter with a nominal output voltage of 18V. It delivers 300W of convection-cooled power and up to 425W with forced air cooling. The converter features a universal input range of 90-264VAC, making it suitable for global applications.
Designed with an open frame and chassis mount, the MU425S18E is ideal for integration into various systems. Key electrical features include adjustable output, Power Factor Correction (PFC), remote on/off, remote sense, and a 5V standby output. It also includes a 12V fan output. The efficiency is rated at a typical 88%.
This converter operates within a temperature range of -10°C to 70°C with derating. It meets CE approval agency standards and provides 1.5 kV isolation voltage. The dimensions are 157.4mm x 83.8mm x 41.1mm (6.20" x 3.30" x 1.62").
Compliance includes RoHS3, MSL 1, and REACH Unaffected, though these statuses are unverified.
The main output voltage is 18V.
The convection power rating is 300W.
The typical efficiency is 88%.
The operating temperature range is -10°C to 70°C, with derating applied.
The dimensions are 157.4mm x 83.8mm x 41.1mm (6.20" x 3.30" x 1.62").
