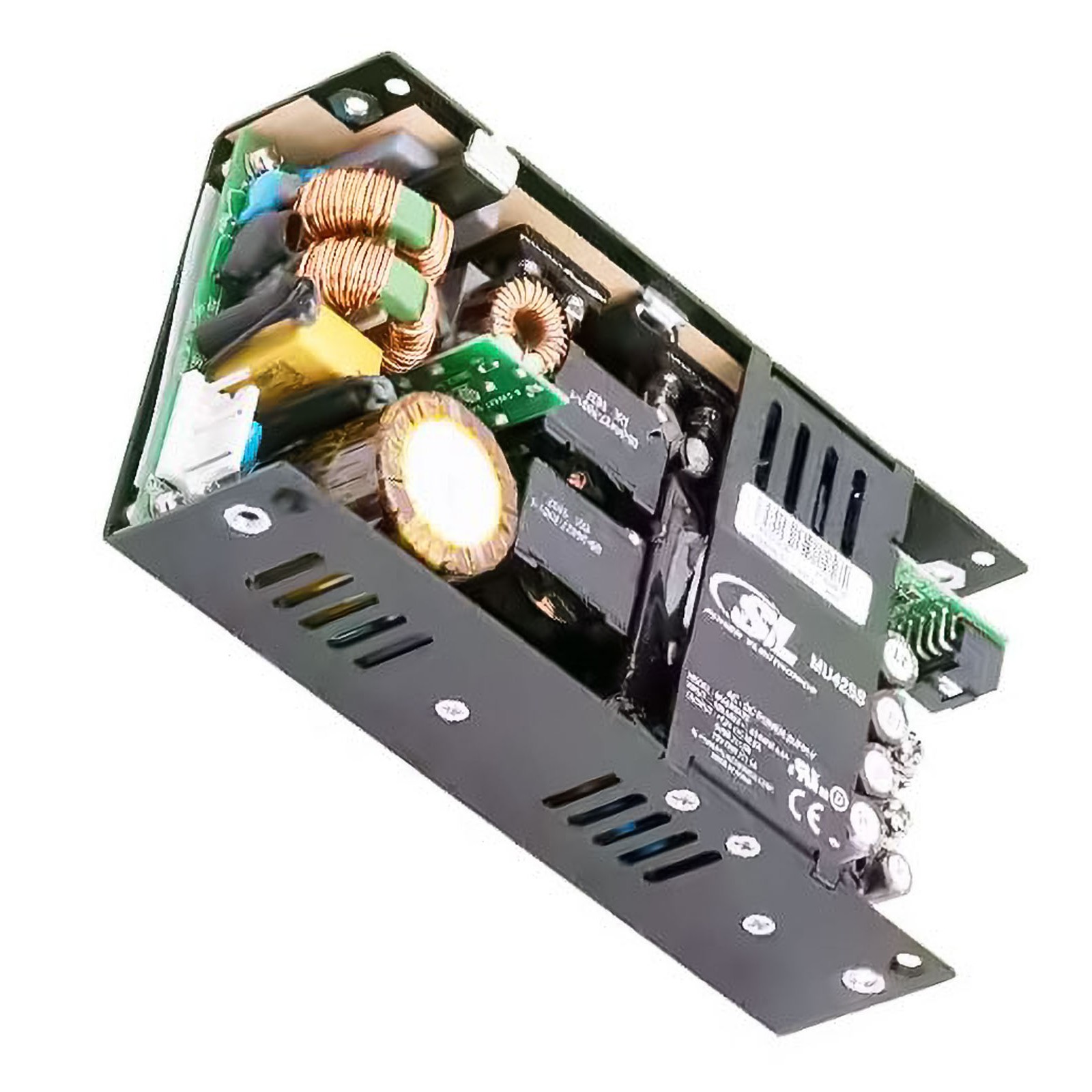

The SL Power Electronics MU425S12E is an open-frame AC/DC converter designed for chassis mounting. It delivers 300W of convection-cooled power and up to 425W with forced air cooling, featuring a 12V output voltage.
This converter operates with a universal input range of 90-264VAC and boasts a typical efficiency of 88%. Key features include adjustable output, Power Factor Correction (PFC), remote on/off, remote sense, and a 5V standby output. It also includes a 12V fan output.
The unit has an isolation voltage of 1.5 kV and is approved by CE. It meets specific EMI/EMC requirements including EN61000-4-2, EN61000-4-3, and EN61000-4-6, making it suitable for home healthcare applications.
With dimensions of 157.4mm x 83.8mm x 41.1mm (6.20" L x 3.30" W x 1.62" H), the MU425S12E is designed for integration into various systems. It operates within a temperature range of -10°C to 70°C with derating.
The input voltage range is 90-264 VAC.
The output voltage is 12V. The output current is 22A with convection cooling and 32.2A with 200 LFM forced air.
The power rating is 300W with convection cooling and 425W with forced air.
The operating temperature range is -10°C to 70°C with derating.
The typical efficiency is 88%.
The dimensions are 157.4mm x 83.8mm x 41.1mm (6.20" x 3.30" x 1.62").
It is approved to CSA/EN/IEC/UL60601-1, 3rd Edition with 2 MOPP isolation.
