| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
153 pcs
|
153 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

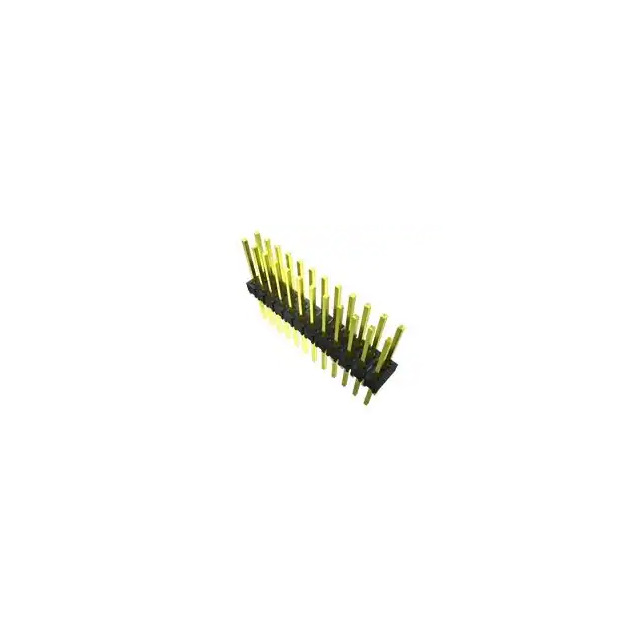

The MTSW-115-09-L-D-430-RA is a 30-position, dual-row, unshrouded header from Samtec Inc. It features a 2.54mm pitch and a right-angle through-hole mounting style for efficient board-to-board or cable interconnection. The connector uses phosphor bronze contacts with a tin plating and a contact finish thickness of 10.0µin (0.25µm). The insulation is made of black glass-filled polyester with a UL94 V-0 flammability rating, providing a robust operating temperature range of -55°C to 125°C. The header is rated for 3A continuous current and features a push-pull fastening mechanism. The contact length is 10.92mm (0.430") and the insulation height is 5.56mm (0.219"). This part is designed for solder termination and is part of the MTSW series of modified strip headers.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.91 | $2.91 |
| 10+ | $27.98 | $27.98 |
| 50+ | $27.42 | $27.42 |
| 100+ | $26.87 | $26.87 |
| 500+ | $26.34 | $26.34 |
| 1,000+ | $25.81 | $25.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions arranged in 2 rows.
2.54mm (0.100")
3A
Through hole, right angle.
-55°C to 125°C
Phosphor bronze.
UL94 V-0
