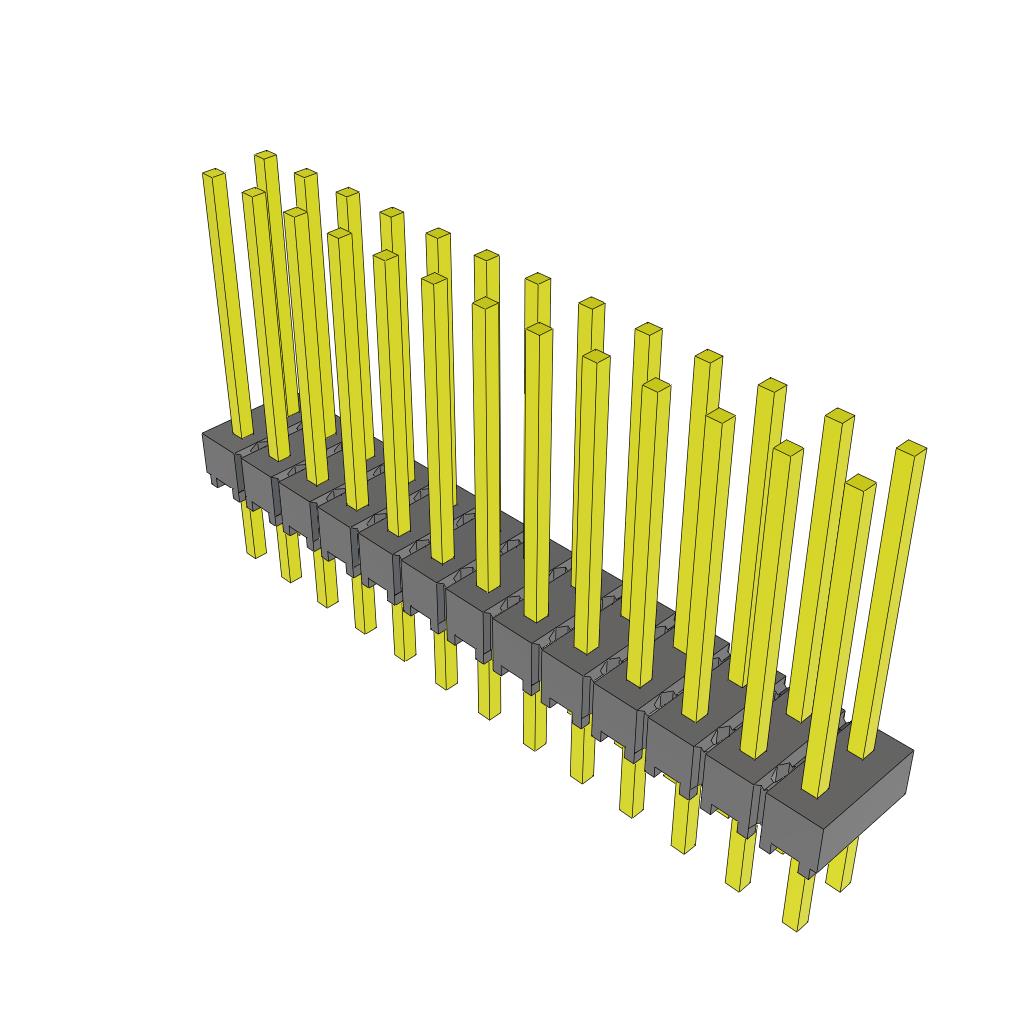

MTSW-113-09-L-D-475 The MTSW-113-09-L-D-475 is a 26-position, 2-row, 2.54mm pitch unshrouded male pin header by Samtec Inc. It features through-hole termination, tin-plated phosphor bronze contacts, and a push-pull fastening mechanism.
Mfr Part #:

MTSW-113-09-L-D-475

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The MTSW-113-09-L-D-475 is a 26-position, 2-row, 2.54mm pitch unshrouded male pin header by Samtec Inc. It features through-hole termination, tin-plated phosphor bronze contacts, and a push-pull fastening mechanism.
✓ Total Stock: 2 pcs
$ Price Range: $2.56

MTSW-113-09-L-D-475 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MTSW-113-09-L-D-475 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

MTSW-113-09-L-D-475 Description

Short technical summary and product information.

The MTSW-113-09-L-D-475 is a 26-position unshrouded male pin header from Samtec's MTSW series. It features two rows at 2.54mm (0.100") pitch and row spacing, with all positions loaded. The header is designed for board-to-board or cable connections and is through-hole mounted with solder termination. The contacts are made of phosphor bronze with a tin plating (0.25µm) and the insulator is black glass-filled polyester with UL94 V-0 flammability rating. The overall contact length is 18.54mm (0.730") with a contact length of 12.07mm. The operating temperature range is -55°C to +125°C and the current rating is 3A. This header is compatible with many Samtec socket strips and cable assemblies. The MTSW series is a non-standard, non-returnable product as per Samtec's specifications. The part is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). Note that the datasheet indicates this part is not lead-free solderable and requires wave soldering, which is a key design consideration.

MTSW-113-09-L-D-475 Quick Information

Product Type: Header, Male Pins
Series: MTSW
Canonical Name: Samtec MTSW-113-09-L-D-475 Header, Male Pins, 26 Position, 2.54mm Pitch, Through Hole, Unshrouded
Subcategory: Unshrouded Header

MTSW-113-09-L-D-475 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MTSW-113-09-L-D-475 Estimated Pricing

Qty Low High
1+ $2.56 $2.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

MTSW-113-09-L-D-475 Features

  • 26 positions with 2.54mm pitch.
  • Unshrouded male pin header design.
  • Tin-plated phosphor bronze contacts.
  • Through-hole mounting and solder termination.
  • UL94 V-0 rated insulation material.

MTSW-113-09-L-D-475 Applications

  • Ideal for board-to-board interconnects.
  • Used for cable-to-board connections.
  • Compatible with Samtec SSW and SSQ series.
  • Suitable for signal and power distribution.

MTSW-113-09-L-D-475 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the MTSW-113-09-L-D-475 have?

26 positions, all loaded, arranged in 2 rows.

What is the pitch of this header?

2.54mm (0.100") pitch and row spacing.

What is the current rating per pin?

3A.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-55°C to +125°C.

What is the contact material and finish?

Phosphor bronze with tin plating (0.25µm).

Is the header shrouded or unshrouded?

Unshrouded.
