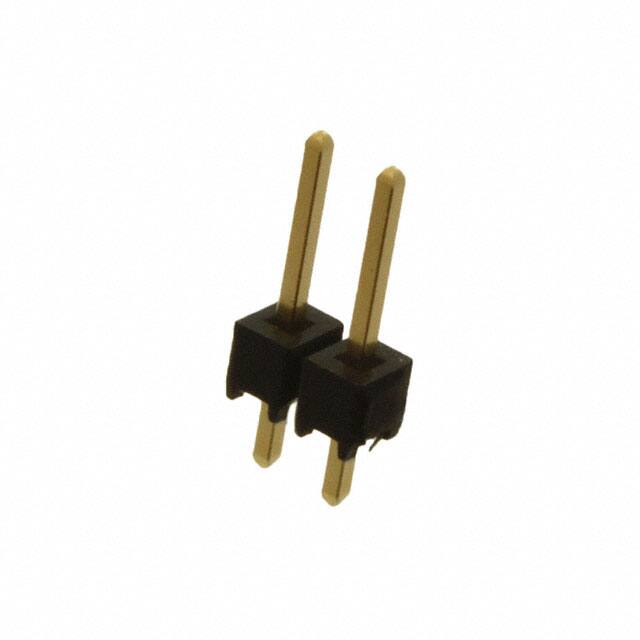

MTSW-102-07-G-S-240 The MTSW-102-07-G-S-240 is a 2-position, single-row male pin header with 2.54mm pitch. It features through hole mounting, gold-plated contacts, and a black glass-filled polyester insulator rated UL94 V-0.
Mfr Part #:

MTSW-102-07-G-S-240

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The MTSW-102-07-G-S-240 is a 2-position, single-row male pin header with 2.54mm pitch. It features through hole mounting, gold-plated contacts, and a black glass-filled polyester insulator rated UL94 V-0.
✓ Total Stock: 423 pcs
$ Price Range: $0.14 - $0.21

MTSW-102-07-G-S-240 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
423 pcs
On Request
423 pcs On Request 1 On Request On Request 40223 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MTSW-102-07-G-S-240 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Failure Rate
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

MTSW-102-07-G-S-240 Description

Short technical summary and product information.

The MTSW-102-07-G-S-240 is a modified strip header from Samtec's MTSW series, designed for board-to-board or cable applications. It features 2 positions in a single row with a standard 2.54mm (0.100") pitch, suitable for compact interconnects.



This header has male square pins (0.025" square) with gold plating over nickel on the mating area (10.0µin gold) and matte tin on the solder tails. The overall contact length is 10.92mm, with a mating post length of 6.10mm. The insulator is black glass-filled polyester with a UL94 V-0 flammability rating.



It is through-hole mounted with solder termination, and the unshrouded push-pull fastening allows easy mating with compatible socket strips. The operating temperature range is -55°C to +125°C, and the current rating is 3A per contact.

MTSW-102-07-G-S-240 Quick Information

Product Type: Header
Series: MTSW
Canonical Name: Header, Male Pins, 2 Position, 2.54mm Pitch, Through Hole
Subcategory: Male Pin Header

MTSW-102-07-G-S-240 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Moisture Sensitivity Level 1 - Unlimited
REACH Status: REACH Unaffected
Lead Free: Not Lead-Free; MTSW series - Lead Wave Only

MTSW-102-07-G-S-240 Estimated Pricing

Qty Low High
1+ $0.21 $0.21
50+ $0.19 $0.19
100+ $0.16 $0.16
500+ $0.14 $0.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

MTSW-102-07-G-S-240 Features

  • 2 positions with 2.54mm (0.100") pitch.
  • Gold-plated phosphor bronze square pins.
  • Through hole mounting with solder tails.
  • Rated UL94 V-0 for flammability.
  • Operating temperature range -55°C to +125°C.

MTSW-102-07-G-S-240 Applications

  • Connects PCBs in board-to-board configurations.
  • Used with Samtec socket strips like SSW.
  • Suitable for cable-to-board connections via IDC.
  • Ideal for low-profile vertical stacking.

MTSW-102-07-G-S-240 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the MTSW-102-07-G-S-240 have?

2 positions.

What is the pitch of this header?

2.54mm (0.100")

What is the current rating?

3A per contact

What is the mounting type?

Through hole

What is the operating temperature range?

-55°C to +125°C

What is the contact material?

Phosphor bronze with gold plating

What is the insulation material and flammability rating?

Black glass-filled polyester, UL94 V-0
