| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,202 pcs
|
7202 pcs | On Request | 1 | On Request | On Request | 1230+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Function | |
| Interface | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| SVHC Present | |
| Step Resolution | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The MTS62C19A-HS105 from Microchip Technology is a versatile CMOS motor driver designed for bipolar stepper motors and bidirectional DC motor control. Each of its two independent H-bridge outputs can sustain up to 40V and deliver 750 mA of continuous current.
This device features internal PWM current control, protection diodes, thermal shutdown, and undervoltage lockout for robust operation. It supports full, half, and micro-stepping operations, making it suitable for various motor control applications. The output current limit is selectable, and the device is compatible with LS-TTL logic inputs.

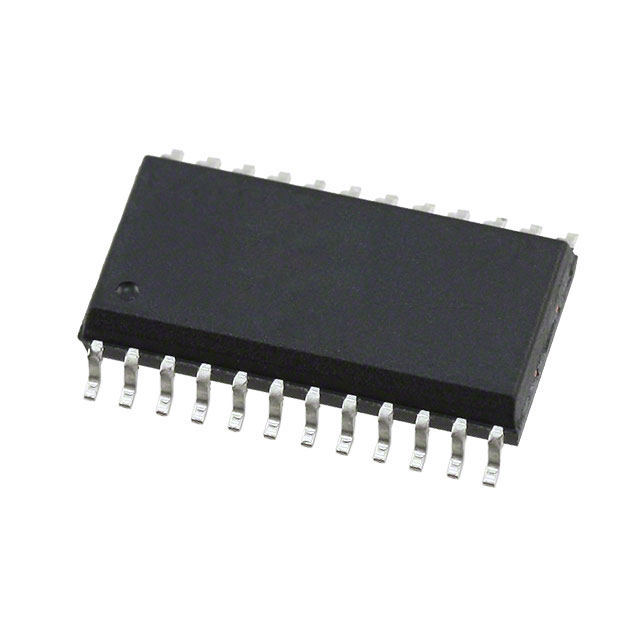

Packaged in a 24-pin SOP, the MTS62C19A-HS105 is designed for surface mount applications. Its operating temperature range is -40°C to +105°C, and it is suitable for automotive applications such as power seats and HVAC ventilation.
Key specifications include a 10V to 40V operating voltage range, 750 mA continuous output current, and a -40°C to +105°C operating temperature. The device supports bipolar stepper motors and offers multiple step resolutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous output current is 750 mA.
The load voltage supply range is 10V to 40V.
The operating junction temperature range is -40°C to +105°C.
The MTS62C19A-HS105 is available in a 24-SOP surface-mount package (24-SOIC, 0.295" width, 7.50mm).
The driver supports full, half, quarter, and eighth step resolutions (1, 1/2, 1/4, 1/8).
The MTS62C19A-HS105 is pin-compatible with the Allegro 6219.
