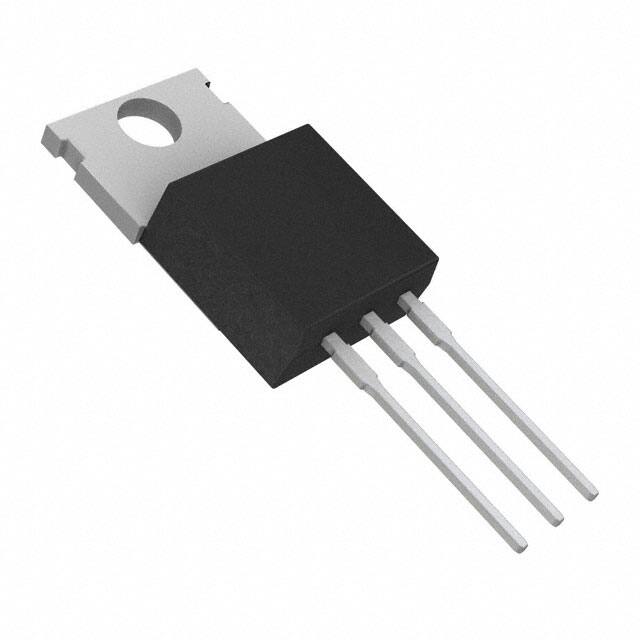

The On Semiconductor MTP36N06V is an N-Channel Power MOSFET designed for switching applications. It features a maximum drain-source voltage (Vdss) of 60V and a continuous drain current (Id) of 32A at a case temperature (Tc).
Key electrical characteristics include a maximum on-resistance (Rds On) of 40mOhm at 16A and 10V gate drive voltage, a maximum gate charge (Qg) of 50nC at 10V, and an input capacitance (Ciss) of 1700pF at 25V. The device operates within a temperature range of -55°C to 175°C (TJ).
This MOSFET is housed in a TO-220-3 package, suitable for through-hole mounting. Its design offers high energy capability in avalanche and commutation modes, making it well-suited for applications requiring robustness against voltage transients.
Applications include switch mode power supplies, converters, and power motor controls.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) for the MTP36N06V is 60V.
The continuous drain current (Id) for the MTP36N06V is 32A at the case temperature.
The maximum on-resistance (Rds On) for the MTP36N06V is 40mOhm when measured at 16A drain current and 10V gate-source voltage.
The operating temperature range for the MTP36N06V is -55°C to 175°C (TJ).
The MTP36N06V MOSFET is supplied in a TO-220-3 package.
