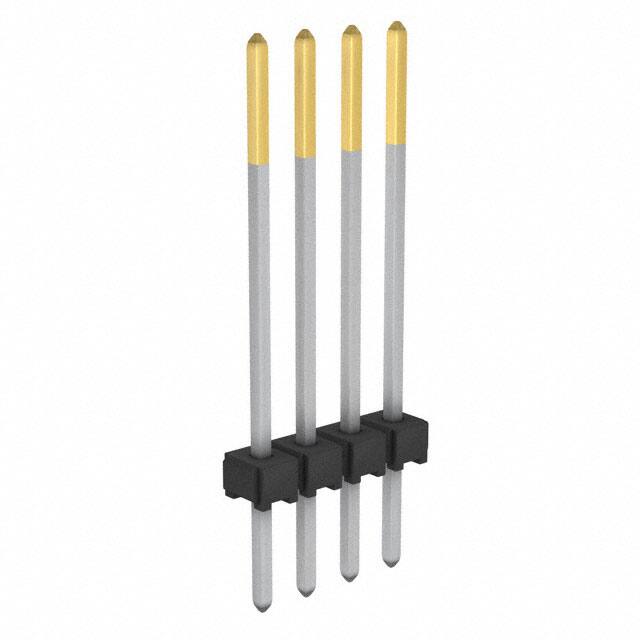

MTMM-104-14-S-S-535 This is a 4-position, single row, 2.00mm pitch unshrouded male pin header from Samtec. It features through hole mounting and solder termination with tin contact finish.
Mfr Part #:

MTMM-104-14-S-S-535

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
This is a 4-position, single row, 2.00mm pitch unshrouded male pin header from Samtec. It features through hole mounting and solder termination with tin contact finish.
✓ Total Stock: 9 pcs
$ Price Range: $1.31

MTMM-104-14-S-S-535 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Emiteli ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MTMM-104-14-S-S-535 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Shrouding
Style
Termination
View Similar Products (0)

MTMM-104-14-S-S-535 Description

Short technical summary and product information.

The Samtec MTMM-104-14-S-S-535 is a 4-position, single row, 2.00mm pitch unshrouded male pin header designed for board-to-board or cable applications. It features a cuttable design allowing customization of pin count. The header uses through hole mounting with solder termination and push-pull fastening. Contacts are made of phosphor bronze with a tin finish (30µin) and have a square shape. The insulator is black liquid crystal polymer (LCP) with a flammability rating of UL94 V-0. Electrical rating is 3A with an operating temperature range of -55°C to 125°C. Overall contact length is 0.751" (19.08mm) with a contact length of 13.59mm and insulation height of 1.50mm.

MTMM-104-14-S-S-535 Quick Information

Product Type: Header, Male Pins
Series: MTMM
Canonical Name: 4 Position Single Row 2.00mm Pitch Unshrouded Header, Through Hole, Solder Termination, Tin Contact Finish
Subcategory: Unshrouded Header

MTMM-104-14-S-S-535 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MTMM-104-14-S-S-535 Estimated Pricing

Qty Low High
1+ $1.31 $1.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

MTMM-104-14-S-S-535 Features

  • 4-position single row 2.00mm pitch header.
  • Unshrouded male pin with through hole solder.
  • Cuttable design for customizable pin count.
  • Rated for 3A continuous current operation.
  • Operating temperature range -55°C to 125°C.

MTMM-104-14-S-S-535 Applications

  • Board-to-board interconnections in electronic assemblies.
  • Cable-to-board connections with compatible receptacles.
  • Prototyping and custom pin count applications.

MTMM-104-14-S-S-535 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the MTMM-104-14-S-S-535 have?

4 positions.

What is the pitch of this header?

2.00mm.

What is the current rating?

3A.

What is the mounting type?

Through hole.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Tin, 30.0µin (0.76µm).

Is this header shrouded?

No, it is unshrouded.
