Mfr Part #:

MTMM-103-14-L-D-570

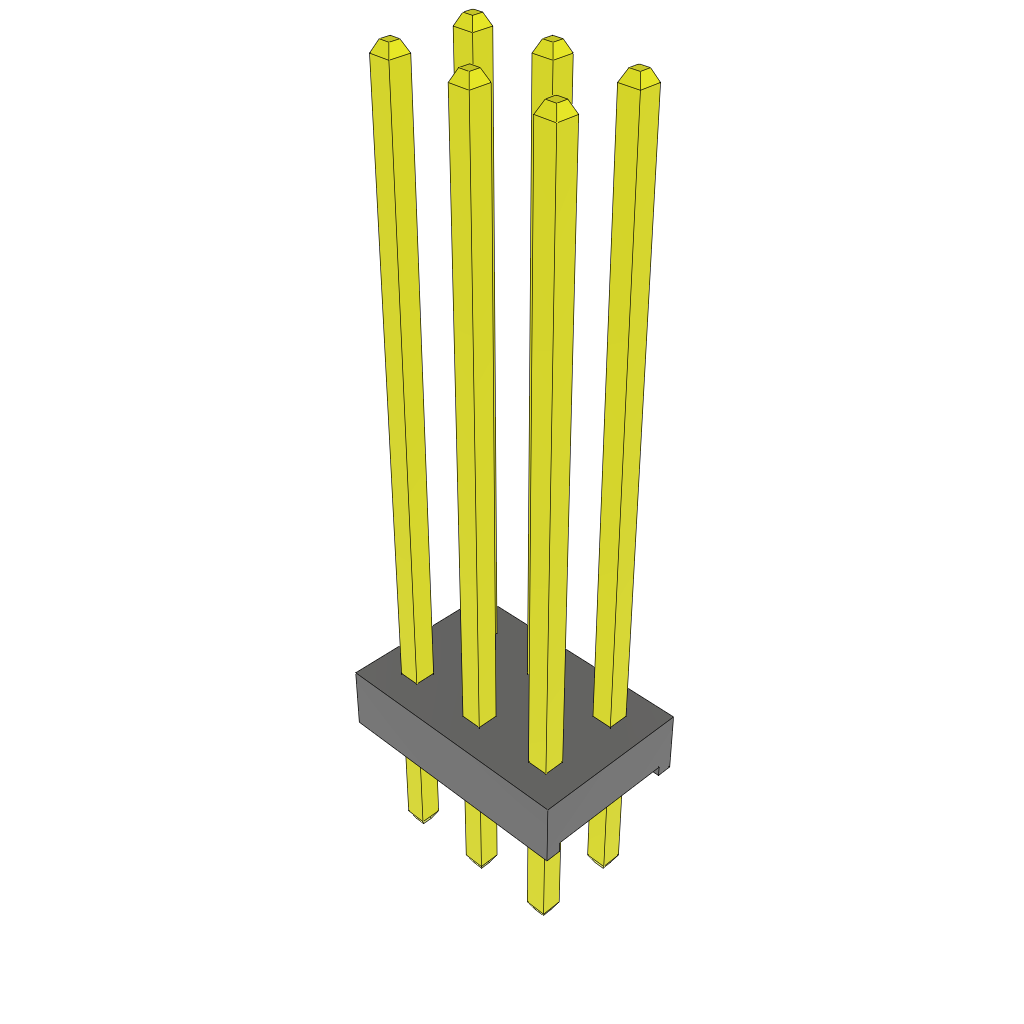

The Samtec Inc. MTMM-103-14-L-D-570 is a vertical header strip with a 2.00mm pitch. It features through-hole mounting and a 3A current rating.

✓ Total Stock: 14 pcs

$ Price Range: $1.00

MTMM-103-14-L-D-570 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Chanetech ✓ Non-Authorised Inventory information	14 pcs On Request	14 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MTMM-103-14-L-D-570 Description

Short technical summary and product information.

The Samtec Inc. MTMM-103-14-L-D-570 is a variable post height header strip designed for through-hole termination. It operates on a 2.00 mm (0.0787") pitch and offers a current rating of up to 3.2 Amps per pin. This connector is available in custom configurations and features a Flex Stack design that allows for modified post height and body position in precise increments.

Key specifications include 6 positions across 2 rows, a contact finish of Tin with a thickness of 10.0µin (0.25µm), and a contact material of Phosphor Bronze. The insulation is made of Liquid Crystal Polymer (LCP) and is black in color, with a material flammability rating of UL94 V-0. The operating temperature range is -55°C to 125°C.

This header strip is suitable for board-to-board or cable applications. It is mounted via through-hole termination and features a Push-Pull fastening type. The contact shape is square, and the contact length is 14.47mm (0.570"). The overall contact length is 19.08mm (0.751").

MTMM-103-14-L-D-570 Quick Information

Product Type: Header, Male Pin

Series: MTMM

Canonical Name: Samtec Inc. MTMM Series Vertical Header Strip, 2.00 mm Pitch

Subcategory: Male Pin

MTMM-103-14-L-D-570 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH No SVHCs

Lead Free: Lead Free

MTMM-103-14-L-D-570 Estimated Pricing

Qty	Low	High
1+	$1.00	$1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

MTMM-103-14-L-D-570 Features

2.00 mm pitch vertical header strip.
6 positions across 2 rows.
3A current rating per pin.
Through-hole mounting style.
Flex Stack design for custom height.

MTMM-103-14-L-D-570 Applications

Ideal for PCB-to-PCB connections
Suitable for electronic instrumentation
Used in industrial control systems
Applicable in communication equipment

MTMM-103-14-L-D-570 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the pitch of the header connector?

The pitch of the header connector is 2.00mm (0.079 inches).

How many positions does this connector have?

This connector has 6 positions.

What is the current rating per contact?

The current rating per contact is 3A.

What mounting type does this connector use?

It uses through hole mounting.

What material is used for the contact finish?

The contact finish is tin.

What is the operating temperature range?

-55°C to 125°C.

Is this product RoHS compliant?

Yes, it is RoHS compliant.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header, Cuttable
Contact Finish	Tin
Contact Finish Thickness	0.25µm (10.0µin)
Contact Length	14.47mm (0.570")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Halogen Free	Yes
Insulation Color	Black
Insulation Height	1.50mm (0.059")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	2.00mm mm
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Orientation	Vertical
Overall Contact Length	19.08mm (0.751")
Pitch	2.00mm (0.079")
Row Spacing	2.00mm (0.079")
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
