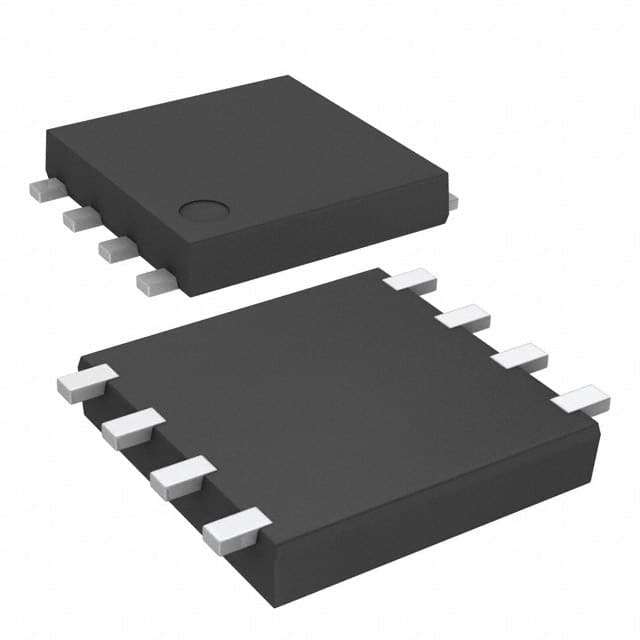

MTM981400BBF The Panasonic Electronic Components MTM981400BBF is a P-Channel MOSFET designed for surface mounting. It features a 40V drain-to-source voltage and a continuous drain current of 7A.
Mfr Part #:

MTM981400BBF

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components MTM981400BBF is a P-Channel MOSFET designed for surface mounting. It features a 40V drain-to-source voltage and a continuous drain current of 7A.
✓ Total Stock: 3,000 pcs
$ Price Range: $0.99

MTM981400BBF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MTM981400BBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

MTM981400BBF Description

Short technical summary and product information.

The MTM981400BBF from Panasonic Electronic Components is a P-Channel MOSFET with a drain-to-source voltage (Vdss) of 40V and a maximum continuous drain current (Id) of 7A at ambient temperature.



This MOSFET utilizes Metal Oxide Semiconductor technology and is designed for surface mount applications, housed in an SO8-F1-B package. It offers a low on-resistance (Rds On) of 25mOhm at 7A and 10Vgs, with a gate-to-source voltage range of ±20V. The gate threshold voltage (Vgs(th)) is a maximum of 2.5V at 1mA.



With a maximum power dissipation of 2W (Ta) and an operating temperature range up to 150°C (TJ), the MTM981400BBF is suitable for various power management applications. Its input capacitance (Ciss) is 2700 pF at 10Vds.



This component is RoHS3 compliant and has an MSL rating of 1.

MTM981400BBF Quick Information

Product Type: MOSFET
Canonical Name: MTM981400BBF P-Channel MOSFET
Subcategory: P-Channel

MTM981400BBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MTM981400BBF Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MTM981400BBF Features

  • P-Channel MOSFET technology.
  • 40V drain-to-source voltage rating.
  • 7A continuous drain current.
  • Low 25mOhm Rds On.
  • SO8-F1-B surface mount package.

MTM981400BBF Applications

  • Suitable for power switching.
  • Used in voltage regulation circuits.
  • Ideal for load management.
  • Applicable in battery powered devices.

MTM981400BBF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the drain-to-source voltage for the MTM981400BBF?

The drain-to-source voltage (Vdss) for the MTM981400BBF is 40V.

What is the maximum continuous drain current of the MTM981400BBF?

The maximum continuous drain current (Id) for the MTM981400BBF is 7A at ambient temperature.

What is the on-resistance (Rds On) for the MTM981400BBF?

The on-resistance (Rds On) for the MTM981400BBF is a maximum of 25mOhm at 7A drain current and 10V gate-to-source voltage.

What is the package type for the MTM981400BBF?

The MTM981400BBF is supplied in an SO8-F1-B package, which is an 8-SMD, Flat Lead surface mount type.

What is the operating temperature range of the MTM981400BBF?

The MTM981400BBF can operate at temperatures up to 150°C (TJ).
