| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

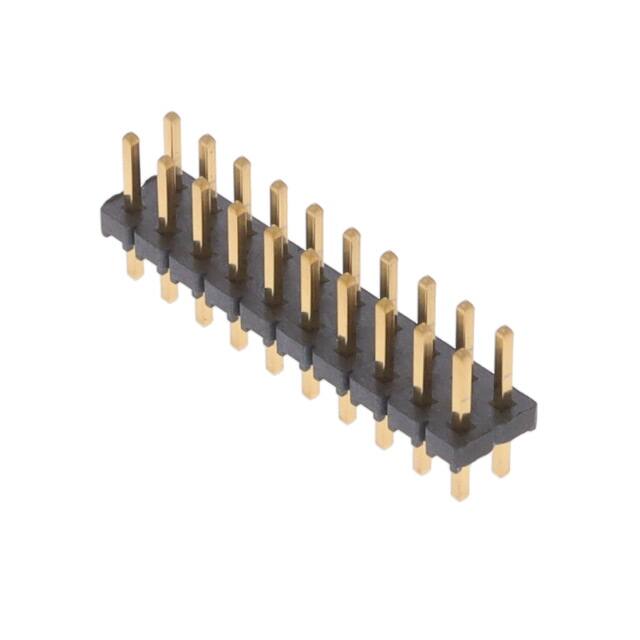

The Samtec MTLW-110-05-G-D-170 is a 20 position, dual row, unshrouded header from the MTLW series. It features a 2.54mm pitch and 2.54mm row spacing, making it suitable for board-to-board or cable applications. The header uses a through hole mounting with solder termination and has a push-pull fastening type.
The contacts are made of phosphor bronze with a gold finish of 0.25µm thickness. The square pin contacts have a contact length of 4.32mm and an overall contact length of 8.51mm. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
This header is rated for 5.2A per contact and operates over a temperature range of -55°C to 125°C. It is part of Samtec's Flex Stack design, allowing modified post heights. The part is supplied in bulk packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.28 | $4.28 |
| 50+ | $3.49 | $3.49 |
| 100+ | $2.96 | $2.96 |
| 500+ | $2.74 | $2.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 20 positions in 2 rows.
The current rating is 5.2A per contact.
It is a through hole mounting with solder termination.
The operating temperature range is -55°C to 125°C.
The contacts are phosphor bronze with a gold finish of 0.25µm thickness.
No, it is unshrouded.
