| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Efficiency | |
| For Use With | |
| Input Voltage | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Overload Protection | |
| Storage Temperature |

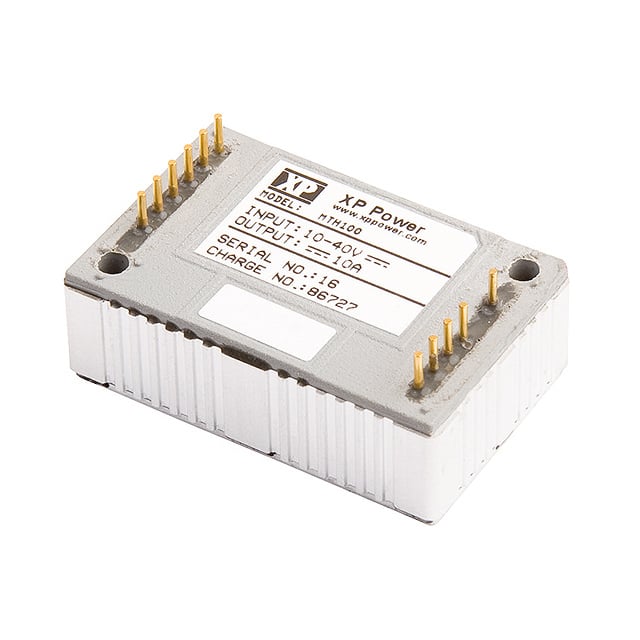

The XP Power MTH100 series is a DC/DC converter designed for extended hold-up applications, offering reduced system size and weight by requiring 80% less hold-up capacitance. It operates with a wide input voltage range of 10-40 VDC and provides a maximum output current of 10A, delivering up to 100W of power.
Key electrical specifications include a typical efficiency of 98%, low no-load current (<50 mA), and robust protection features such as overload and overtemperature protection. The device is built to withstand demanding environmental conditions, with an operating temperature range of -40 °C to +100 °C (case) and tested to high shock and vibration standards.
This hold-up box is suitable for integration into various systems, particularly those requiring reliable power backup. Its design facilitates easier system integration and contributes to overall system reliability in industrial and other demanding applications.
100 W.
Yes, it sustains no damage from overload or short circuits.
-40 °C to +100 °C at the case.
It is specifically designed for use with the MTC Series.
1000 VDC from both input and output to the case.
It shuts down if case temperature reaches 102-107 °C and restarts after 10 seconds.
MIL-STD-810D/E for environmental testing and MIL-STD-461E/F/G for EMC.
