| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
312 pcs
|
312 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Form Factor | |
| Industrial Grade | |
| Medical Grade | |
| Memory Size | |
| Memory Type | |
| Military Grade | |
| Operating Temperature | |
| Speed | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Weight |

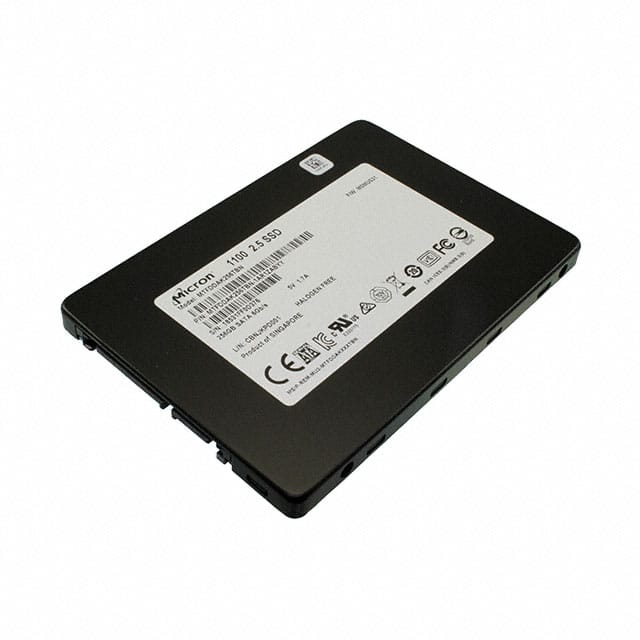

This Micron 1100 series SSD, part number MTFDDAK256TBN-1AR1ZABYY, provides 256GB of storage capacity using 3D TLC NAND Flash technology. It features a SATA 6 Gb/s interface and a 2.5-inch x 7mm form factor, making it suitable for a wide range of applications.
The drive supports advanced features such as TCG/Opal 2.0 compliance and a hardware-based AES-256 encryption engine for data security. Performance is highlighted by sequential read speeds of up to 530 MB/s and sequential write speeds of up to 500 MB/s. Random read performance reaches up to 55,000 IOPS, and random write performance reaches up to 83,000 IOPS.
Reliability is supported by an MTTF of 1.5 million hours and an endurance rating of 120TBW (Total Bytes Written). The SSD operates within a commercial temperature range of 0°C to +70°C and supports low power consumption modes like Device Sleep (DEVSLP) with power draw below 4mW.
Additional features include dynamic write acceleration, adaptive thermal monitoring, and power loss protection for data-at-rest. The drive also supports secure firmware updates with digitally signed images.
| Qty | Low | High |
|---|---|---|
| 1+ | $60.15 | $60.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MTFDDAK256TBN-1AR1ZABYY SSD has a capacity of 256GB.
This SSD uses 3D TLC NAND Flash memory.
The SSD uses a SATA 6 Gb/s interface.
The sequential read speed is up to 530 MB/s, and the sequential write speed is up to 500 MB/s.
Yes, it features a hardware-based AES-256 encryption engine and is TCG/Opal 2.0 compliant.
The operating temperature range is 0°C to 70°C.
The endurance rating is 120TBW (Total Bytes Written).
