| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Current Rating (Amps) | |
| Features | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

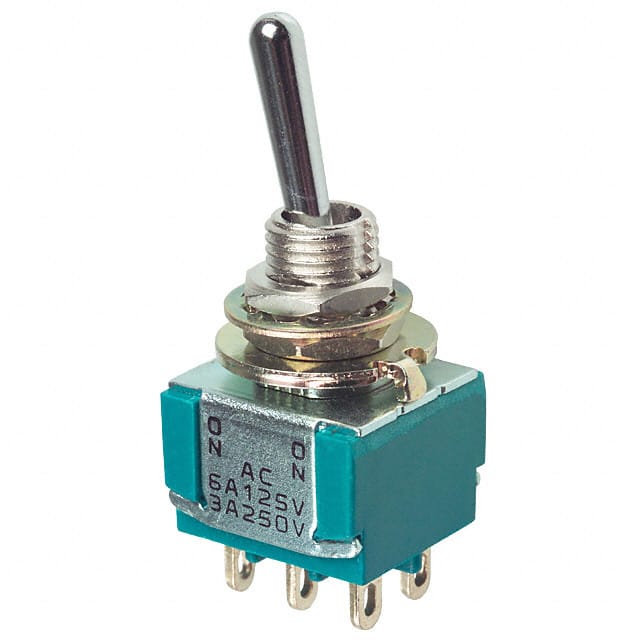

This TE Connectivity MTA206N is a DPDT (Double Pole, Double Throw) toggle switch suitable for various applications requiring reliable switching.
It features a panel mount design with solder lug termination for secure connections. The switch operates within a temperature range of -20°C to 80°C and has a voltage rating of 28V. The current carrying capacity is 6A for AC and 4A for DC.
Key features include epoxy sealed terminals for enhanced durability and protection. The actuator is a standard round type with a length of 10.49mm, and the panel cutout diameter is 6.40mm. The bushing thread size is 1/4-40.
This non-illuminated toggle switch offers a simple On-On function, making it a versatile component for control panels and electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -20°C to 80°C.
The voltage rating is 28V, with a current rating of 6A for AC and 4A for DC.
The MTA206N is designed for panel mounting.
It uses solder lug termination.
The circuit configuration is DPDT (Double Pole, Double Throw).
No, the MTA206N is a non-illuminated switch.
