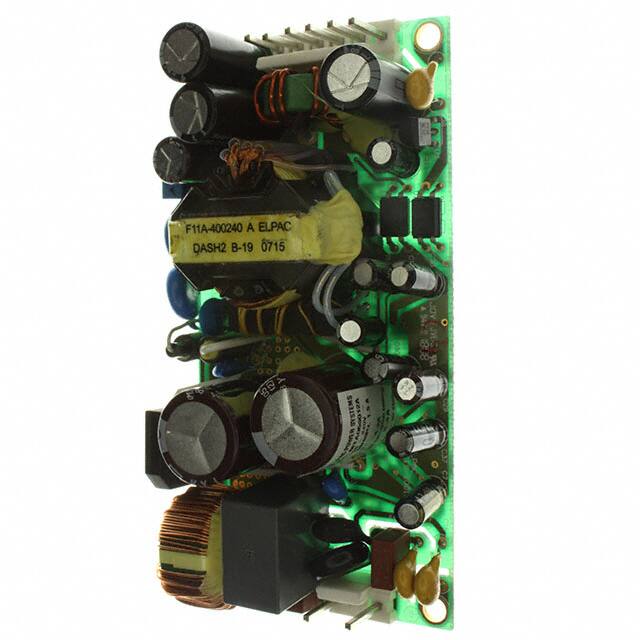

This Inventus Power MTA065012A is an open frame AC/DC converter designed for medical applications. It offers a power output of 50W, with a higher rating of 65W under forced air cooling. The device accepts a wide input voltage range from 85 to 264 VAC, providing flexibility for global use. Its dimensions are 101.6mm x 50.8mm x 27.9mm, and it features a chassis mount type.
Key electrical specifications include an output current of 4.2A and an efficiency of 89%. The operating temperature range is -20°C to 70°C with derating. The converter is approved by CB and CE agencies, and it supports universal input.
This model is RoHS3 compliant and has an MSL rating of 1. It is designed for reliable performance in demanding environments.
The output voltage is 12V DC.
85 to 264 VAC.
-20°C to 70°C with derating.
Chassis mount.
50W continuous, 65W with forced air cooling.
CB and CE approvals for medical applications.
89%.
