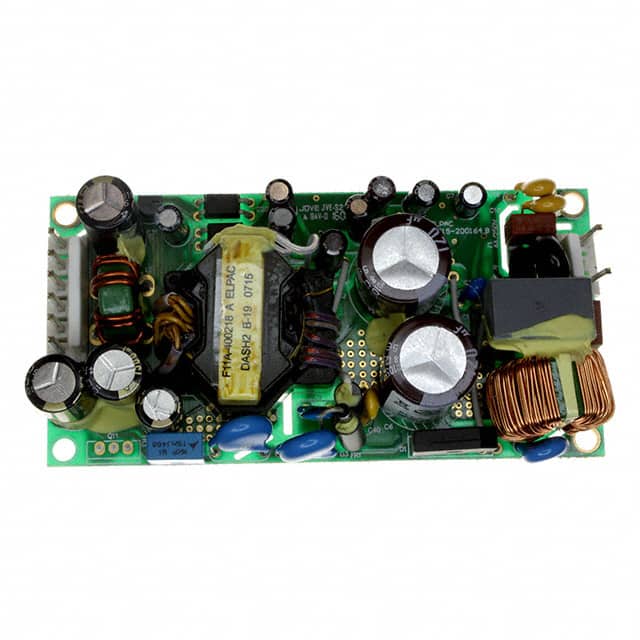

The Inventus Power MTA065009A is an open frame AC/DC converter designed for medical applications. It accepts a wide input voltage range of 85 to 264 VAC, providing a stable output power of 50W, with a higher rating of 65W under forced air cooling.
This converter features a chassis mount design and offers universal input capabilities. With a single output and an efficiency of 88%, it operates within a temperature range of -20°C to 70°C with derating. Its dimensions are 101.6mm x 50.8mm x 27.9mm.
Key specifications include an output current of 5.6A and approval by CB and CE agencies. The MTA065009A is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
The input voltage range is 85 to 264 VAC.
The output is 9V at 5.6A.
The base power rating is 50W, and it can deliver 65W with forced air cooling.
The operating temperature range is -20°C to 70°C with derating.
The efficiency is 88%.
The mounting type is chassis mount.
It carries CB and CE safety approvals.
