| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
1,077 pcs
|
1077 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ADC Resolution | |
| Active Imager Size | |
| Active Pixel Array | |
| Active Pixels | |
| Color Filter Array | |
| Frame Rate | |
| Frames per Second | |
| Maximum Data Rate / Pixel Clock | |
| Operating Temperature | |
| Optical Format | |
| Pixel Dynamic Range | |
| Pixel Size | |
| Power Consumption | |
| SNRMAX | |
| Shutter Type | |
| Supplier Device Package | |
| Supply Voltage (Nominal) | |
| Supply Voltage - I/O | |
| Type | |
| Voltage | |
| responsivity |

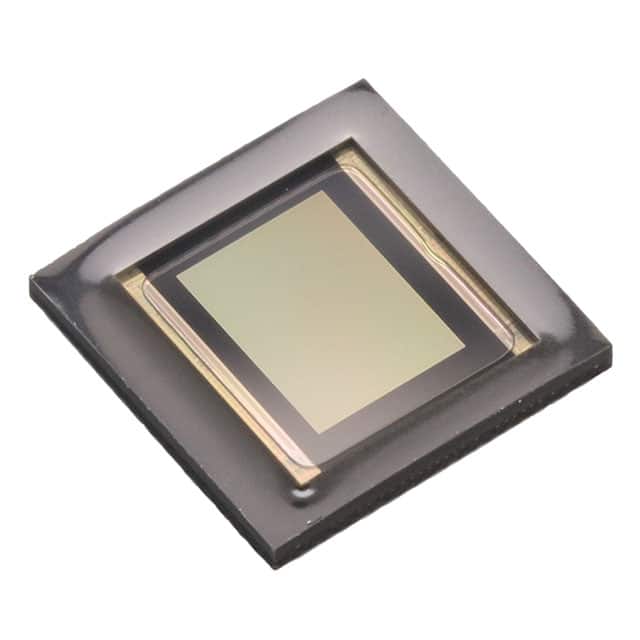

The ON Semiconductor MT9P031I12STM-DP is a 1/2.5-inch CMOS active-pixel digital image sensor with an active imaging pixel array of 2592H x 1944V. It features a pixel size of 2.2µm x 2.2µm and supports a maximum frame rate of up to 14 fps at full resolution, with higher rates possible for reduced resolutions like HDTV.
This sensor incorporates sophisticated camera functions on-chip, including windowing, column and row skip modes, and snapshot mode, all programmable through a simple two-wire serial interface. It utilizes ON Semiconductor's low-noise CMOS imaging technology to achieve CCD image quality while maintaining the advantages of CMOS integration.
The device operates with supply voltages ranging from 1.7V to 3.1V for I/O and 1.7V to 1.9V for digital. It has an operating temperature range of -30°C to +70°C. The sensor is supplied in a 48-pin iLCC package.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MT9P031I12STM-DP has an active imaging pixel array of 2592H x 1944V.
The optical format is 1/2.5-inch, and the pixel size is 2.2µm x 2.2µm.
The frame rate is programmable up to 14 fps at full resolution.
The supply voltage for I/O is 1.7V to 3.1V, digital is 1.7V to 1.9V (1.8V nominal), and analog is 2.6V to 3.1V (2.8V nominal).
The operating temperature range is -30°C to +70°C.
The sensor is supplied in a 48-pin iLCC (10x10) package.
